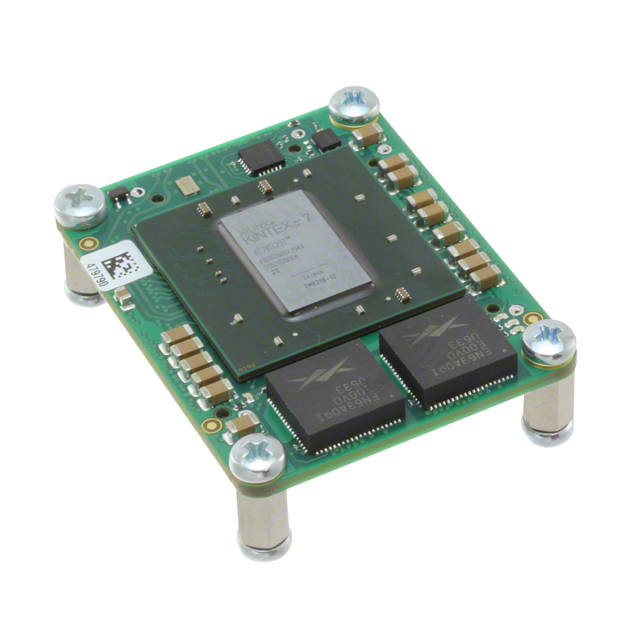

TE0741-03-325-2CF

Obsolete

Trenz Electronic

IC MOD KINTEX-7 325T 200MHZ 32MB

Search across all available documentation for this part.

Obsolete

Trenz Electronic

IC MOD KINTEX-7 325T 200MHZ 32MB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MOD KINTEX-7 325T 200MHZ 32MB

Part	Flash Size	Module/Board Type	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Core Processor	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Trenz Electronic TE0741-03-325-2CF	32 MB	FPGA Core	200 MHz	70 °C	0 °C	Samtec LSHM	Kintex-7 325T	50 mm	1.97 "	40 mm	1.57 "
Trenz Electronic TE0741-03-160-2IF	32 MB	FPGA Core	200 MHz	85 °C	-40 °C	Samtec LSHM	Kintex-7 160T	50 mm	1.97 "	40 mm	1.57 "
Trenz Electronic TE0741-03-070-2CF	32 MB	FPGA Core	200 MHz	70 °C	0 °C	Samtec LSHM	Kintex-7 70T	50 mm	1.97 "	40 mm	1.57 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0741 Embedded Module Kintex-7 325T 200MHz 32MB

Technical documentation and resources

No documents available
