BAV99

Active

Good-Ark Semiconductor

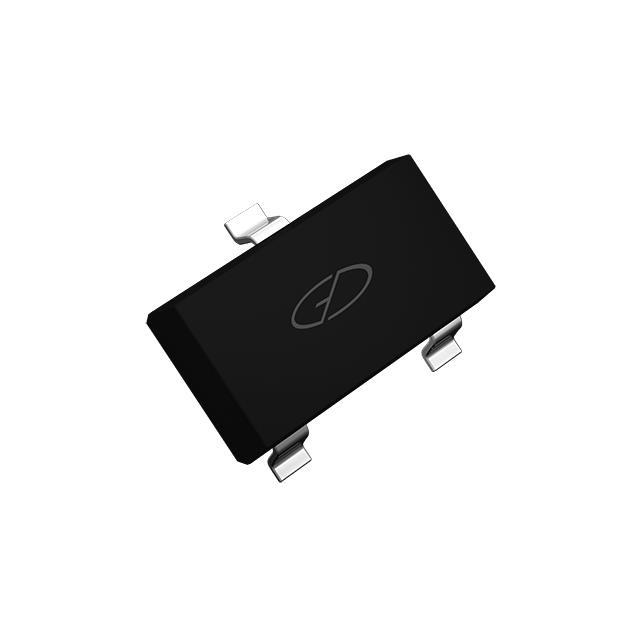

DIODE ARRAY GP 70V 200MA SOT23

Search across all available documentation for this part.

Active

Good-Ark Semiconductor

DIODE ARRAY GP 70V 200MA SOT23

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BAV99	BAV99 Series

Current - Average Rectified (Io) (per Diode)	200 mA	150 - 200 mA
Current - Reverse Leakage @ Vr	2.5 µA	2.5 µA
Diode Configuration	1 Pair Series Connection	1 Pair Series Connection, 2 Pair Series Connection
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	-	150 ¯C
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59	SC-70, SOT-323, SOT-23-3, TO-236-3, SC-59, 6-TSSOP, SC-88, SOT-363
Reverse Recovery Time (trr)	6 ns	4 - 6 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	SOT-23	SOT-323, SOT-23, SOT-363
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	70 V	70 - 75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V	1.25 V

DIODE ARRAY GP 75V 150MA SOT323

Part	Current - Average Rectified (Io) (per Diode)	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Technology	Speed	Speed	Operating Temperature - Junction	Mounting Type	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Good-Ark Semiconductor BAV99W	150 mA	4 ns	1.25 V	2.5 µA	SOT-323	75 V	SC-70, SOT-323	Standard	Any Speed	200 mA	150 ¯C	Surface Mount	1 Pair Series Connection
Good-Ark Semiconductor BAV99	200 mA	6 ns	1.25 V	2.5 µA	SOT-23	70 V	SC-59, SOT-23-3, TO-236-3	Standard	Any Speed	200 mA		Surface Mount	1 Pair Series Connection	150 °C	-55 °C
Good-Ark Semiconductor BAV99DW	150 mA	4 ns	1.25 V	2.5 µA	SOT-363	75 V	6-TSSOP, SC-88, SOT-363	Standard	Any Speed	200 mA	150 ¯C	Surface Mount	2 Pair Series Connection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 70 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
