P2392X
ActiveSWITCHCRAFT/CONXALL
MAINS POWER CORD, NEMA 5-15P, IEC 60320 C13, 2.3 M, 10 A, 125 VAC, BLACK
P2392X
ActiveSWITCHCRAFT/CONXALL
MAINS POWER CORD, NEMA 5-15P, IEC 60320 C13, 2.3 M, 10 A, 125 VAC, BLACK
Description
General part information
P2392X

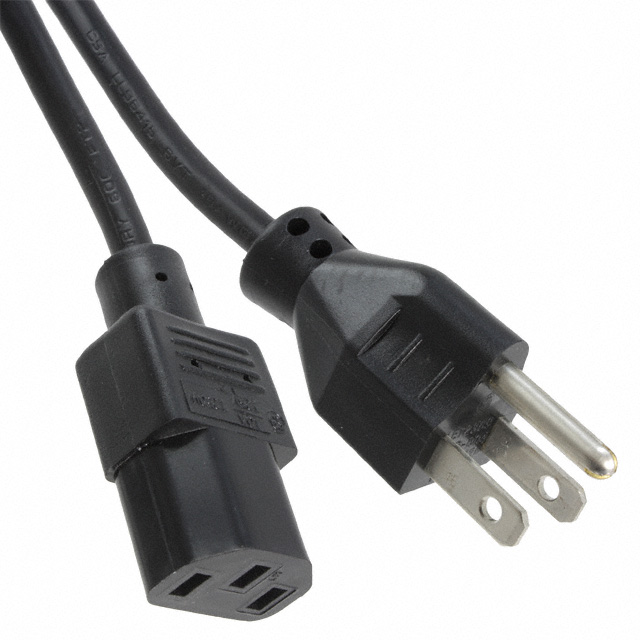

The P2392X is a 2.3m IEC Power Cord with black SVT vinyl conductor and female connector. It is designed for primary power connections in US, Canadian and European electrical/electronic equipment.
Technical Specifications
Parameters and characteristics for this part
| Specification | P2392X |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SVT |
| Current Rating | 10 A |
| Length | 7.5 ft |
| Number of Conductors | 3 |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 18 AWG |
