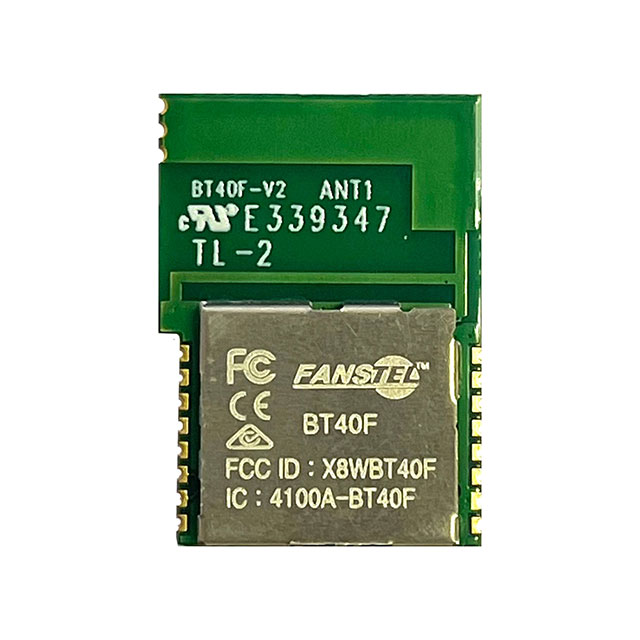

BT40F

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BT TH SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BT TH SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.1, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BT40F	BT40 Series

Antenna Type	PCB Trace	PCB Trace, Antenna Not Included, U.FL
Current - Receiving	2.6 mA	2.6 mA
Current - Transmitting	3.2 mA	3.2 mA
Data Rate	2 Mbps	2 Mbps
For Use With/Related Products	-	nRF5340, BT40
Frequency	2.4 GHz	2.4 GHz
Memory Size [custom]	512 kB	512 kB
Memory Size [custom]	1 MB	1 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Power - Output	3 dBm	3 dBm
Protocol	Bluetooth v5.1, Zigbee®	Bluetooth v5.1, Zigbee®
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Sensitivity	-97.5 dBm	-97.5 dBm
Serial Interfaces	SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC	SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC
Supplied Contents	-	Board(s)
Type	-	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	nRF5340	nRF5340
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

EVAL BOARD FOR BT40

Part	Type	For Use With/Related Products	Frequency	Supplied Contents	Current - Transmitting	Operating Temperature [Min]	Operating Temperature [Max]	Current - Receiving	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	Protocol	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Antenna Type	Power - Output	Mounting Type	Data Rate	RF Family/Standard
Fanstel Corp. EV-BT40	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver	BT40, nRF5340	2.4 GHz	Board(s)
Fanstel Corp. BT40F			2.4 GHz		3.2 mA	-40 °C	105 ░C	2.6 mA	512 kB	1 MB	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.1, Zigbee®	nRF5340	5.5 V	1.7 V	-97.5 dBm	PCB Trace	3 dBm	Surface Mount	2 Mbps	802.15.4, Bluetooth
Fanstel Corp. BT40E			2.4 GHz		3.2 mA	-40 °C	105 ░C	2.6 mA	512 kB	1 MB	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.1, Zigbee®	nRF5340	5.5 V	1.7 V	-97.5 dBm	Antenna Not Included, U.FL	3 dBm	Surface Mount	2 Mbps	802.15.4, Bluetooth
