Description
General part information

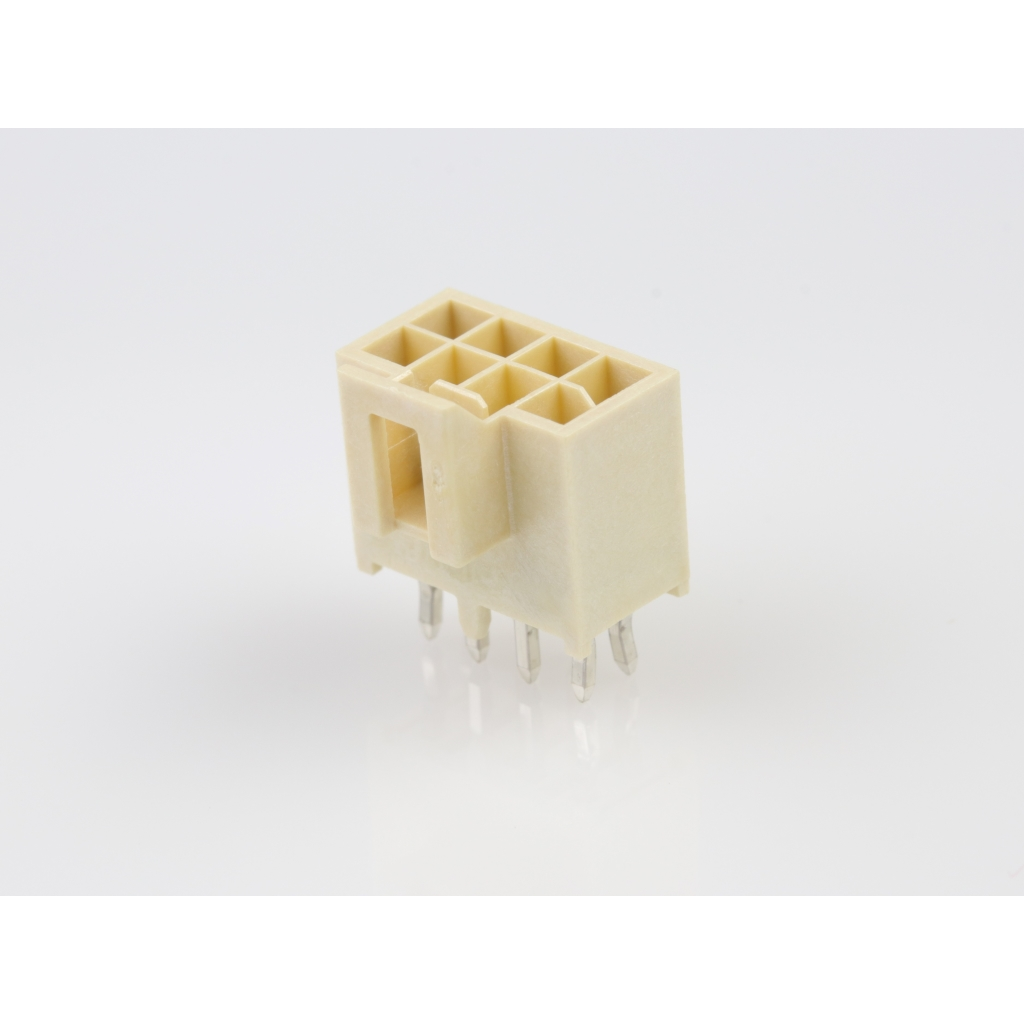

1053102208
CONN WIRE TO BOARD HDR 8POWER POS 2.5MM SOLDER ST TOP ENTRY THRU-HOLE NANO-FIT TRAY
Technical Specifications
Parameters and characteristics for this part
| Specification | 1053102208 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Length - Post | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.356 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.098 in |
| Row Spacing - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 V |
