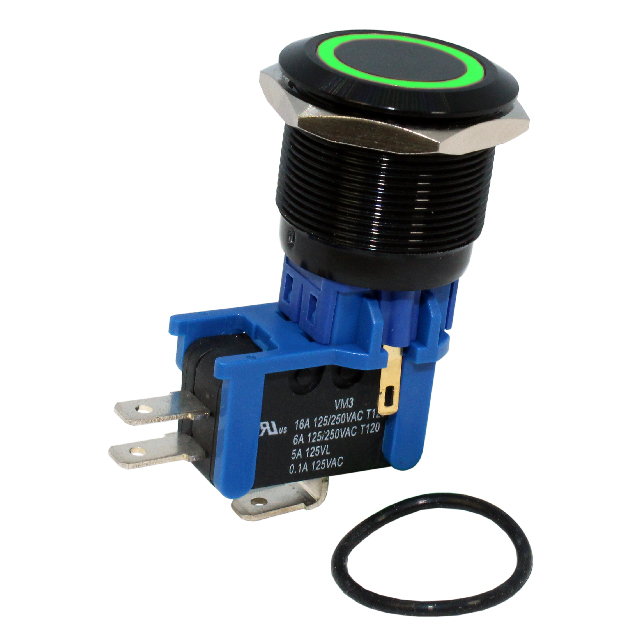

Specification	DHU251NBBGNB

Actuator Marking	No Marking
Actuator Type	Round, Flush, Button
Circuit	SPDT
Color	Green
Color - Actuator/Cap	Black
Current Rating	16 A
Electrical Life (Cycles)	100000 Cycles
Illumination Type	LED
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	25 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Quick Connect Size (0.250")	0.25 in
Quick Connect Size (Primary)	0.11 in
Quick Connect Size (Secondary)	0.25 in
Switch Function	On-Mom
Termination Style	Quick Connect
Type	Illuminated, Anti-Vandal
Voltage Rating - AC	125 V

DHU251 Series

Part	Electrical Life (Cycles)	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Color - Actuator/Cap	Actuator Marking	Mounting Type	Quick Connect Size (0.250")	Termination Style	Quick Connect Size (Secondary)	Quick Connect Size (Primary)	Quick Connect Size (0.110")	Type	Current Rating	Voltage Rating - AC	Illumination Type	Color	Switch Function	Features
CIT Relay and Switch DHU251LGBBNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Black	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Blue	On-On
CIT Relay and Switch DHU251LGSRNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Silver	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Red	On-On	Stainless Steel
CIT Relay and Switch DHU251NGUBNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Blue	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Blue	On-Mom
CIT Relay and Switch DHU251NBGGNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Green	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Green	On-Mom
CIT Relay and Switch DHU251LARXZB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Red	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal	16 A	125 V			On-On
CIT Relay and Switch DHU251NAUXZB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Blue	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal	16 A	125 V			On-Mom
CIT Relay and Switch DHU251LGGGNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Green	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Green	On-On
CIT Relay and Switch DHU251LBUBNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Blue	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Blue	On-On
CIT Relay and Switch DHU251NGBRNB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Black	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal Illuminated	16 A	125 V	LED	Red	On-Mom
CIT Relay and Switch DHU251LAGXZB	100000 Cycles	Button Flush Round	25 mm	Circular	Dust Tight Waterproof	IP67	-40 °C	85 °C	SPDT	Green	No Marking	Front Panel Mount	0.25 in	Quick Connect	0.25 in	0.11 in	0.11 in	Anti-Vandal	16 A	125 V			On-On
