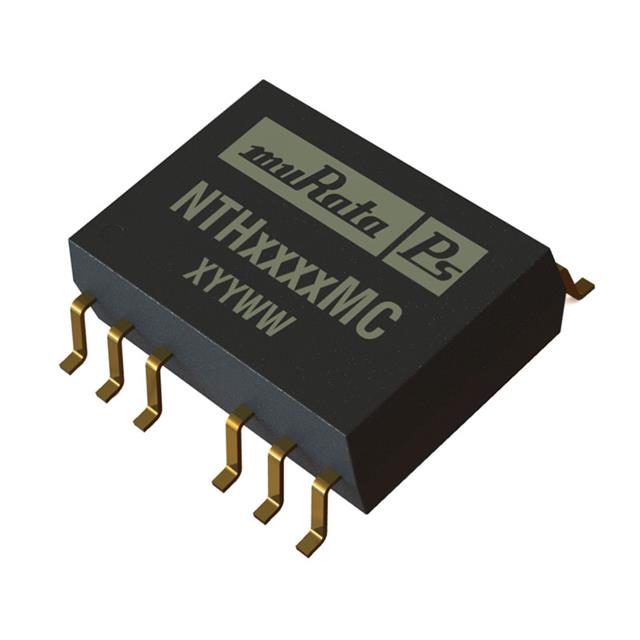

NTH0515MC-R
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NTH0515MC-R
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NTH0515MC-R | NTH05 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 67 mA | 67 - 83 mA |
| Current - Output (Max) | 67 mA | 67 mA |
| Current - Output (Max) | - | 83 mA |
| Efficiency | 84 % | 80 - 84 % |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 26-SMD Module | 26-SMD Module |
| Package / Case | 12 | 12 |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 17.8 mm | 17.8 mm |
| Size / Dimension [x] | 0.7 in | 0.7 in |
| Size / Dimension [y] | 0.5 in | 0.5 in |
| Size / Dimension [y] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 5.8 mm | 5.8 mm |
| Size / Dimension [z] | 0.23 " | 0.23 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 15 V | 5 - 15 V |
| Voltage - Output 2 | -15 V | -15 - -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NTH05 Series
DC DC CONVERTER +/-5V 2W
| Part | Mounting Type | Voltage - Input (Min) [Min] | Type | Voltage - Isolation | Efficiency | Package / Case | Package / Case | Voltage - Input (Max) [Max] | Number of Outputs | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NTH0505MC-R | Surface Mount | 4.5 V | Isolated Module | 1000 V | 80 % | 26-SMD Module | 12 | 5.5 V | 2 | 2 W | 5.8 mm | 17.8 mm | 0.23 " | 0.5 in | 0.7 in | 12.7 mm | -5 V | 85 °C | -40 °C | ITE (Commercial) | 5 V | |||
Murata Power Solutions Inc. NTH0505MC | Surface Mount | 4.5 V | Isolated Module | 1000 V | 80 % | 26-SMD Module | 12 | 5.5 V | 2 | 2 W | 5.8 mm | 17.8 mm | 0.23 " | 0.5 in | 0.7 in | 12.7 mm | -5 V | 85 °C | -40 °C | ITE (Commercial) | 5 V | |||
Murata Power Solutions Inc. NTH0512MC | Surface Mount | 4.5 V | Isolated Module | 1000 V | 26-SMD Module | 12 | 5.5 V | 2 | 2 W | 5.8 mm | 17.8 mm | 0.23 " | 0.5 in | 0.7 in | 12.7 mm | -12 V | 85 °C | -40 °C | ITE (Commercial) | 12 V | 83 mA | 83 mA | ||
Murata Power Solutions Inc. NTH0515MC-R | Surface Mount | 4.5 V | Isolated Module | 1000 V | 84 % | 26-SMD Module | 12 | 5.5 V | 2 | 2 W | 5.8 mm | 17.8 mm | 0.23 " | 0.5 in | 0.7 in | 12.7 mm | -15 V | 85 °C | -40 °C | ITE (Commercial) | 15 V | 67 mA | 67 mA | |
Murata Power Solutions Inc. NTH0515MC | Surface Mount | 4.5 V | Isolated Module | 1000 V | 84 % | 26-SMD Module | 12 | 5.5 V | 2 | 2 W | 5.8 mm | 17.8 mm | 0.23 " | 0.5 in | 0.7 in | 12.7 mm | -15 V | 85 °C | -40 °C | ITE (Commercial) | 15 V | 67 mA | 67 mA | |
Murata Power Solutions Inc. NTH0509MC | Surface Mount | 4.5 V | Isolated Module | 1000 V | 81 % | 26-SMD Module | 12 | 5.5 V | 2 | 2 W | 5.8 mm | 17.8 mm | 0.23 " | 0.5 in | 0.7 in | 12.7 mm | -9 V | 85 °C | -40 °C | ITE (Commercial) | 9 V |
Description
General part information
NTH05 Series
Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 5.5V Input
