1-770902-1
ActiveTE Connectivity AMP Connectors

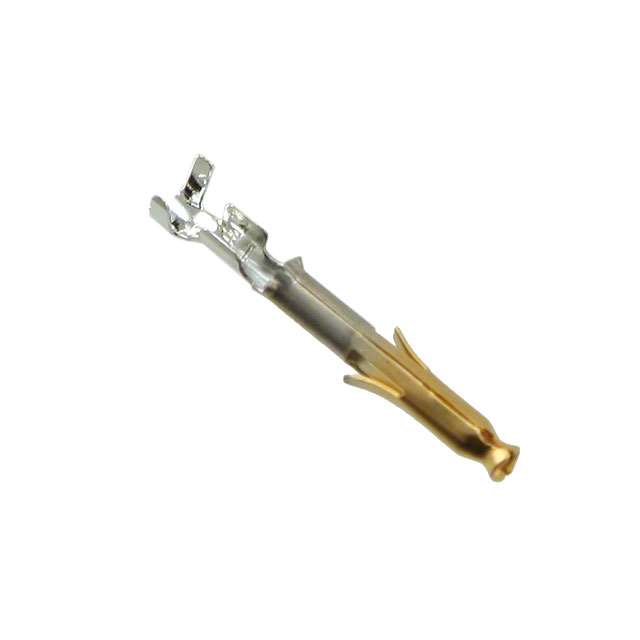

CONN SOCKET 22-26AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-770902-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-770902-1 | 770902 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Power, Stamped, Stamped |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
770902 Series
CONN SOCKET 22-26AWG GOLD CRIMP
| Part | Pin or Socket | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770902-6 | Socket | Crimp | 0.76 Ám | 30 Áin | Gold | Power, Stamped | 22 AWG | 26 AWG | Phosphor Bronze |
TE Connectivity AMP Connectors 1-770902-0 | Socket | Crimp | 0.76 Ám | 30 Áin | Gold | Stamped | 22 AWG | 26 AWG | Brass |
TE Connectivity AMP Connectors 1-770902-1 | Socket | Crimp | 0.76 Ám | 30 Áin | Gold | Stamped | 22 AWG | 26 AWG | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.37 | |||
| 2500 | $ 0.35 | |||
| Tape & Reel (TR) | 7000 | $ 0.34 | ||
| 14000 | $ 0.32 | |||
| 21000 | $ 0.31 | |||
Description
General part information
770902 Series
Socket Contact Gold Crimp 22-26 AWG Stamped
