AIK12F02AN024-Q65

Active

Altech Corporation

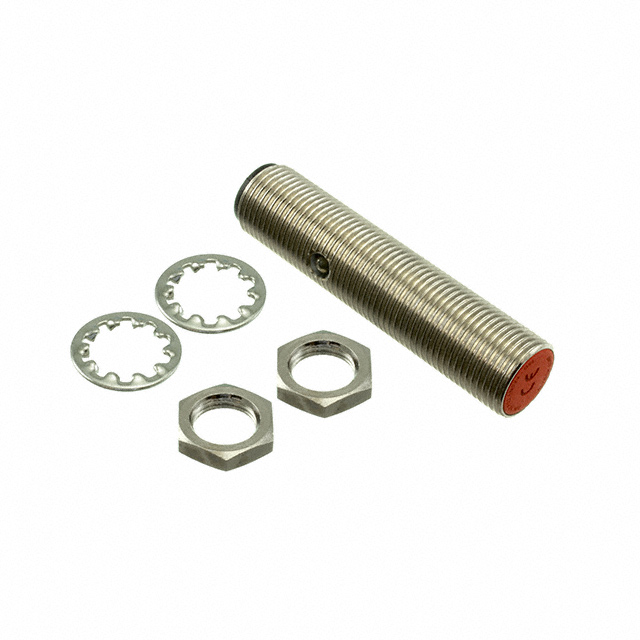

SENSOR PROX INDUCTIVE 2MM CYLIND

Search across all available documentation for this part.

Active

Altech Corporation

SENSOR PROX INDUCTIVE 2MM CYLIND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AIK12F02AN024-Q65	AIK12F02 Series

Indicator [custom]	LED	LED
Ingress Protection	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4
Material - Body	Nickel-Plated Brass	Nickel-Plated Brass
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	PNP-NO, 3-Wire	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12	Cylinder, Threaded - M12
Response Frequency	1 kHz	1 kHz
Sensing Distance	0.079 in	0.079 in
Sensing Distance	2 mm	2 mm
Sensor Type	Inductive	Inductive
Shielding	Shielded	Shielded
Termination Style	Connector	Connector, Cable Leads
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

SENSOR PROX INDUCTIVE 2MM CYLIND

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Ingress Protection	Sensor Type	Output Type	Material - Body	Sensing Distance	Sensing Distance	Indicator [custom]	Package / Case	Response Frequency
Altech Corporation AIK12F02AN024-Q65	70 °C	-25 °C	Shielded	30 VDC	10 VDC	Connector	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	PNP-NO, 3-Wire	Nickel-Plated Brass	0.079 in	2 mm	LED	Cylinder, Threaded - M12	1 kHz
Altech Corporation AIK12F02AP024-Q65	70 °C	-25 °C	Shielded	30 VDC	10 VDC	Connector	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	PNP-NO, 3-Wire	Nickel-Plated Brass	0.079 in	2 mm	LED	Cylinder, Threaded - M12	1 kHz
Altech Corporation AIK12F02AN024-2M	70 °C	-25 °C	Shielded	30 VDC	10 VDC	Cable Leads	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	PNP-NO, 3-Wire	Nickel-Plated Brass	0.079 in	2 mm	LED	Cylinder, Threaded - M12	1 kHz
Altech Corporation AIK12F02AP024-2M	70 °C	-25 °C	Shielded	30 VDC	10 VDC	Cable Leads	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Inductive	PNP-NO, 3-Wire	Nickel-Plated Brass	0.079 in	2 mm	LED	Cylinder, Threaded - M12	1 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.77

General part information

SENSOR PROX INDUCTIVE 2MM CYLIND
