1501540
ActivePhoenix Contact

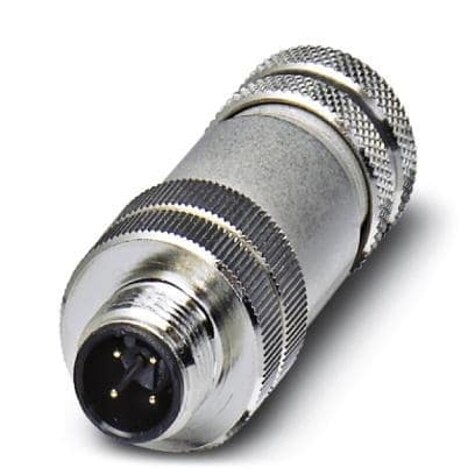

CIRCULAR METRIC CONNECTORS SACC-M12MS-4CON-PG 9 4P MALE STRT M12
1501540
ActivePhoenix Contact
CIRCULAR METRIC CONNECTORS SACC-M12MS-4CON-PG 9 4P MALE STRT M12
Description
General part information
1501540
4 Position Circular Connector Plug, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 1501540 |
|---|---|
| Backshell Material | Zinc Die Cast |
| Cable Opening (Max) | 0.315 in |
| Cable Opening (Min) | 0.236 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Plating | Nickel |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Screw |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 60 VDC |
