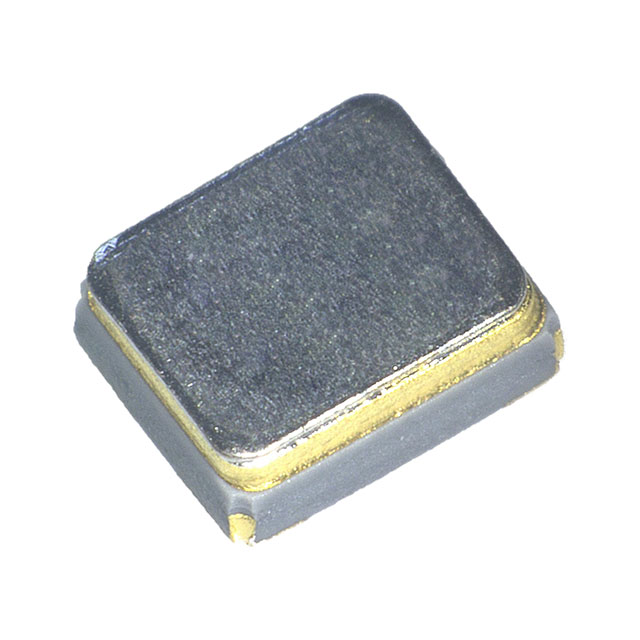

Specification	TG2520SMN 26.0000M-ECGNNM3

Height - Seated (Max)	0.031 in
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Package Length	2.5 mm
Package Name	4-SMD
Package Width	2 mm
Size / Dimension Length	0.098 in
Size / Dimension Width	0.079 in

TG2520SMN Series

...

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Base Resonator	Type	Current - Supply (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Height - Seated (Max)	Output	Frequency Stability	Size / Dimension Width	Size / Dimension Length	Frequency	Package Width	Package Name	Package Length	Voltage - Supply
EPSON TG2520SMN 27.6000M-MCGNNMB	1.7 V 2.8 V	3.3 V 3.63 V	Surface Mount	Crystal	TCXO	1.8 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	27.6 MHz	2 mm	4-SMD	2.5 mm
EPSON TG2520SMN 20.0000M-ECGNNMB	1.7 V	3.63 V	Surface Mount	Crystal	TCXO	1.5 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	20 MHz	2 mm	4-SMD	2.5 mm	1.8 V
EPSON TG2520SMN 26.0000M-MCGNNMB	1.7 V 2.8 V	3.3 V 3.63 V	Surface Mount	Crystal	TCXO	1.5 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	26 MHz	2 mm	4-SMD	2.5 mm
EPSON TG2520SMN 50.0000M-MCGNNM0	1.7 V 2.8 V	3.3 V 3.63 V	Surface Mount	Crystal	TCXO	2 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	50 MHz	2 mm	4-SMD	2.5 mm
EPSON TG2520SMN 32.0000M-ECGNNM5	1.7 V	3.63 V	Surface Mount	Crystal	TCXO	1.8 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	32 MHz	2 mm	4-SMD	2.5 mm	1.8 V
EPSON TG2520SMN 24.0000M-ECGNNM5	1.7 V	3.63 V	Surface Mount	Crystal	TCXO	1.5 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	24 MHz	2 mm	4-SMD	2.5 mm	1.8 V
EPSON TG2520SMN 16.3680M-ECGNNMB	1.7 V	3.63 V	Surface Mount	Crystal	TCXO	1.5 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	16.368 MHz	2 mm	4-SMD	2.5 mm	1.8 V
EPSON TG2520SMN 16.3680M-MCGNNM10	1.7 V 2.8 V	3.3 V 3.63 V	Surface Mount	Crystal	TCXO	1.5 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	16.368 MHz	2 mm	4-SMD	2.5 mm
EPSON TG2520SMN 32.0000M-TCGNNMB	1.7 V	3.63 V	Surface Mount	Crystal	TCXO	1.8 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	32 MHz	2 mm	4-SMD	2.5 mm
EPSON TG2520SMN 52.0000M-ECGNNM0	1.7 V	3.63 V	Surface Mount	Crystal	TCXO	2.1 mA	-40 °C	85 °C	4-SMD No Lead	0.031 in	Clipped Sine Wave	500 ppb	0.079 in	0.098 in	52 MHz	2 mm	4-SMD	2.5 mm	1.8 V
