EW-04-14-L-S-900

Active

Samtec Inc.

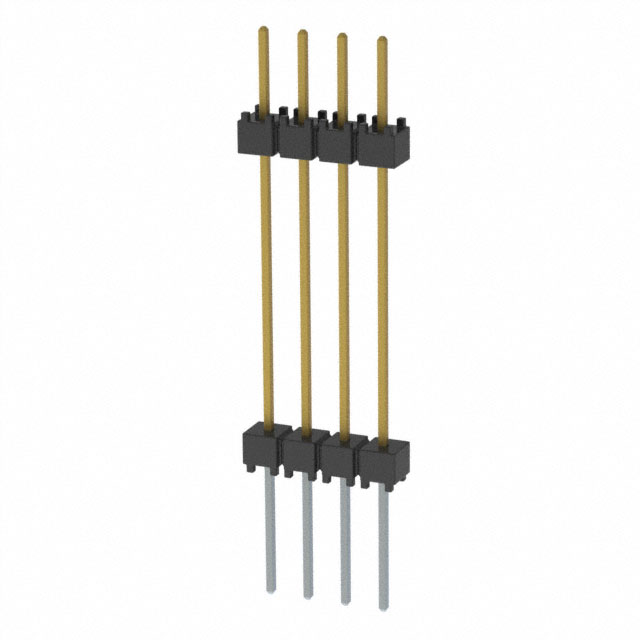

CONN HDR 4POS 0.1 STACK T/H GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EW-04-14-L-S-900

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK T/H GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EW-04-14-L-S-900

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.43 in
Length - Overall Pin [x]	36.322 mm
Length - Post (Mating) [x]	0.2 in
Length - Post (Mating) [x]	5.08 mm
Length - Stack Height [x]	22.86 mm
Length - Stack Height [x]	0.9 in
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	4
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

EW-04-14 Series

Part	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail	Length - Tail	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Color	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. EW-04-14-T-D-770	Solder	0.77 in	19.558 mm	Tin	1.43 in	36.322 mm	2	0.33 in	8.382 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	8	Black	0.1 in	2.54 mm
Samtec Inc. EW-04-14-T-D-995	Solder	0.995 in	25.273 mm	Tin	1.43 in	36.322 mm	2	0.105 in	2.667 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	8	Black	0.1 in	2.54 mm
Samtec Inc. EW-04-14-T-S-935	Solder			Tin	1.43 in	36.322 mm	1	0.165 in	4.191 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	4	Black			0.935 in	23.749 mm
Samtec Inc. EW-04-14-G-D-106	Solder	0.106 in	2.692 mm	Gold	1.43 in	36.322 mm	2	0.994 in	25.248 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	8	Black	0.1 in	2.54 mm			0.25 Ám	10 Áin
Samtec Inc. EW-04-14-T-S-1000	Solder	1 in	25.4 mm	Tin	1.43 in	36.322 mm	1	0.1 in	2.54 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	4	Black
Samtec Inc. EW-04-14-L-S-900	Solder	0.9 in	22.86 mm	Gold	1.43 in	36.322 mm	1	0.2 in	5.08 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	4	Black					0.25 Ám	10 Áin
Samtec Inc. EW-04-14-G-D-750	Solder	0.75 in	19.05 mm	Gold	1.43 in	36.322 mm	2	0.35 in	8.89 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	8	Black	0.1 in	2.54 mm			0.25 Ám	10 Áin
Samtec Inc. EW-04-14-G-S-1000	Solder	1 in	25.4 mm	Gold	1.43 in	36.322 mm	1	0.1 in	2.54 mm	0.33 in	8.382 mm	Through Hole	2.54 mm	0.1 in	4	Black					0.25 Ám	10 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.19

Description

General part information

EW-04-14 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources
