30.602
ActiveAltech Corporation

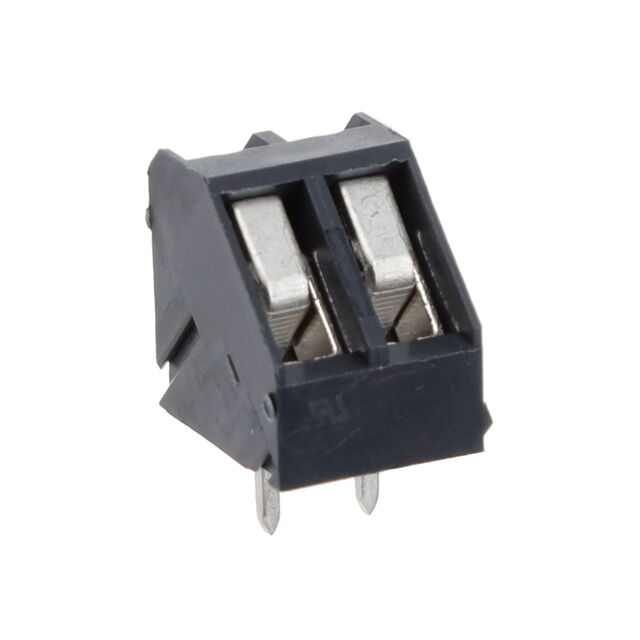

TERM BLOCK 45DEG 2P 50MM 15A GRY
30.602
ActiveAltech Corporation
TERM BLOCK 45DEG 2P 50MM 15A GRY
Description
General part information
30.602
Position Wire to Board Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | 30.602 |
|---|---|
| Color | Gray |
| Current | 16 A |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 2 |
| Voltage | 250 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
