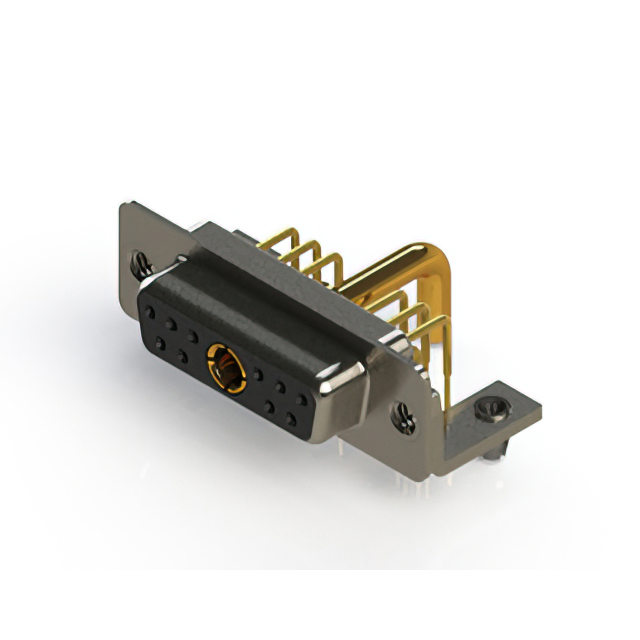

630-11W1250-3NB

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-11W1, RECEPTACLE, 11 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

630-11W1250-3NB

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-11W1, RECEPTACLE, 11 CONTACTS

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-11W1250-3NB

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

630-11W Series

...

Part	Material Flammability Rating	Color	Features	Backset Spacing	Backset Spacing	Connector Style	Termination	Dielectric Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Connector Type	Contact Type	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 630-11W1640-2TD	UL94 V-0	Black	Board Lock Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 20 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle	0.76 Ám	30 Áin	M3	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2
EDAC Inc. 630-11W1250-4N5	UL94 V-0	Black	Board Lock Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 40 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			4-40	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2	Nickel Plated Steel	Flash
EDAC Inc. 630-11W1250-2NE	UL94 V-0	Black	Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 20 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			M3	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2	Nickel Plated Steel	Flash
EDAC Inc. 630-11W1640-3T1	UL94 V-0	Black	Shielded	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 30 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2
EDAC Inc. 630-11W1250-4T3	UL94 V-0	Black	Board Lock Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 40 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			Housing/Shell (4-40)	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2		Flash
EDAC Inc. 630-11W1240-1ND	UL94 V-0	Black	Board Lock Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic		-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			M3	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2	Nickel Plated Steel	Flash	10A 5A
EDAC Inc. 630-11W1250-3N6	UL94 V-0	Black		9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 30 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			4-40	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2	Nickel Plated Steel	Flash
EDAC Inc. 630-11W1650-4TC	UL94 V-0	Black	Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 40 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle	0.76 Ám	30 Áin	Housing/Shell (M3)	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2
EDAC Inc. 630-11W1250-3NB	UL94 V-0	Black	Board Lock Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 30 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			Housing/Shell (M3)	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2	Nickel Plated Steel	Flash
EDAC Inc. 630-11W1240-2N5	UL94 V-0	Black	Board Lock Mounting Brackets	9.4 mm	0.37 in	Combo D-Sub	Solder	Polyester Thermoplastic	5 A 20 A	-55 °C	125 °C	125 VDC	2	10	1	11	Gold	Through Hole Right Angle			4-40	Receptacle Female Sockets	Signal and Power	Copper Alloy	11C1 11W1	2	Nickel Plated Steel	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.51
LCSC	Piece	1	$ 17.36
		200	$ 6.72
		500	$ 6.48
		1000	$ 6.37
Newark	Each	100	$ 8.38
		250	$ 8.17
		500	$ 7.88

Description

General part information

630-11W Series

11 (10 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Drawing EN

Datasheet
