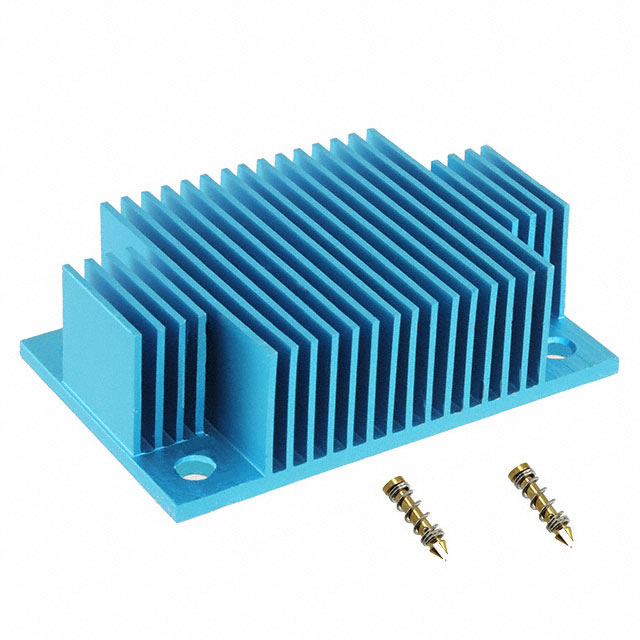

ATS-05F-37-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 36.83X57.6X17.78MM T412

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-05F-37-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 36.83X57.6X17.78MM T412

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-05F-37-C3-R0	ATS-05F Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 "
Fin Height	-	5.84 - 35 mm
Fin Height [z]	17.78 mm	10 - 30 mm
Fin Height [z]	0.7 in	0.394 - 1.181 in
Length	1.45 in	0.984 - 2.756 "
Length	36.83 mm	25 - 70 mm
Length	-	30 - 60 mm
Length	-	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	9.19 °C/W, 100 LFM	2.17 - 100 LFM
Type	Top Mount	Top Mount
Width	2.267 in	1.181 - 2.267 in
Width	57.6 mm	25 - 57.6 mm
Width	-	1.45 - 2.756 in
Width	-	50 - 70 mm
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm

ATS-05F Series

HEATSINK 70X70X10MM XCUT T766

...

Part	Material	Material Finish	Length	Length	Package Cooled	Type	Shape	Attachment Method	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Width	Width	Length [x]	Length [x]	Fin Height	Fin Height	Width [x]	Width [x]
Advanced Thermal Solutions Inc. ATS-05F-209-C2-R0	Aluminum	Blue Anodized	70 mm	2.756 "	ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin	0.394 in	10 mm	6.27 °C/W, 100 LFM	2.756 in	70 mm
Advanced Thermal Solutions Inc. ATS-05F-79-C1-R0	Aluminum	Blue Anodized			ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin	0.394 in	10 mm	26.32 °C/W, 100 LFM			30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-05F-74-C1-R0	Aluminum	Blue Anodized	25 mm	0.984 in	ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin			20.28 °C/W			25 mm				0.59 "	15 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-05F-103-C3-R1	Aluminum	Blue Anodized			ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin			27.78 °C/W, 100 LFM							0.374 in	9.5 mm	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-05F-159-C2-R0	Aluminum	Blue Anodized	45 mm		ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin	0.394 in	10 mm				45 mm			1.772 "			1.772 in
Advanced Thermal Solutions Inc. ATS-05F-137-C2-R0	Aluminum	Blue Anodized	25 mm	0.984 in	ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin	0.394 in	10 mm	18.36 °C/W, 100 LFM			25 mm						0.984 in
Advanced Thermal Solutions Inc. ATS-05F-62-C3-R0	Aluminum	Blue Anodized			ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin			16.58 °C/W, 100 LFM							0.59 "	15 mm	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-05F-13-C1-R0	Aluminum	Blue Anodized			ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin			13.68 °C/W, 100 LFM	1.969 in	50 mm			50 mm	1.969 in	0.59 "	15 mm
Advanced Thermal Solutions Inc. ATS-05F-72-C2-R0	Aluminum	Blue Anodized	45 mm		ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin			5.11 °C/W, 100 LFM			45 mm			1.772 "	1.378 in	35 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-05F-196-C1-R0	Aluminum	Blue Anodized	45 mm		ASIC, BGA, CPU, LGA	Top Mount	Fins, Square	Push Pin			18.07 °C/W, 100 LFM			45 mm			1.772 "			1.772 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.77

Description

General part information

ATS-05F Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
