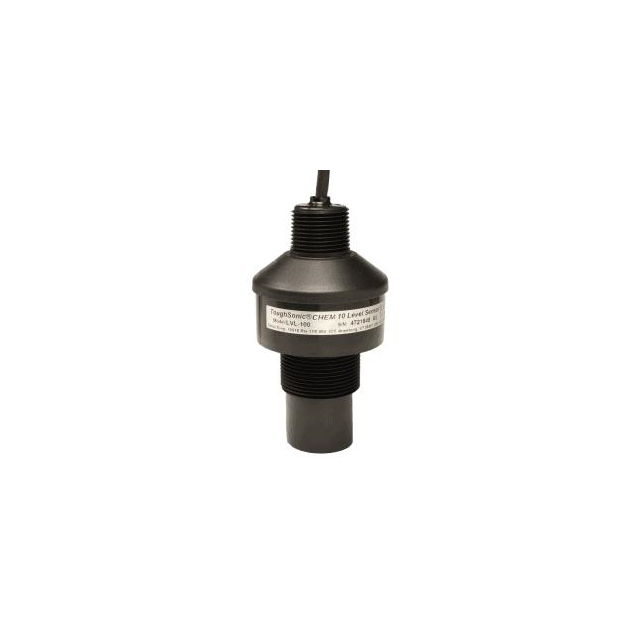

LVL-100-232

Active

Senix Corporation

SENSOR PROX ULTRASONIC 3M CYLIND

Search across all available documentation for this part.

Active

Senix Corporation

SENSOR PROX ULTRASONIC 3M CYLIND

Technical Specifications

Parameters and characteristics for this part

Specification	LVL-100-232

Indicator [custom]	No Indicator
Ingress Protection	IP68 NEMA 4X, IP68 NEMA 6P
Material - Body	Polyvinylidene Difluoride (PVDF)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded
Sensing Distance	3000 mm
Sensing Distance	10 ft
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

SENSOR PROX ULTRASONIC 3M CYLIND

Part	Sensor Type	Termination Style	Material - Body	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Indicator [custom]	Sensing Distance	Sensing Distance	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Shielding	Package / Case
Senix Corporation LVL-100-232	Ultrasonic	Cable Leads	Polyvinylidene Difluoride (PVDF)	-40 °C	70 °C	IP68 NEMA 4X, IP68 NEMA 6P	No Indicator	3000 mm	10 ft	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Unshielded	Cylinder, Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR PROX ULTRASONIC 3M CYLIND

Technical documentation and resources

No documents available
