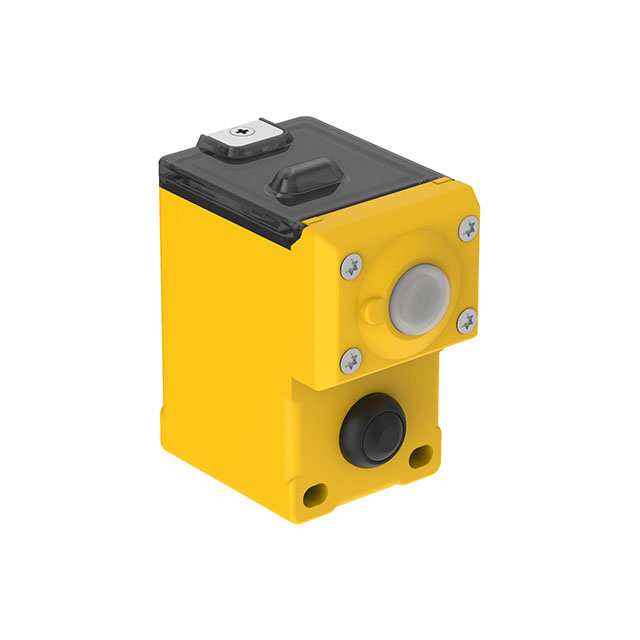

Specification	DX80N9Q45BL-NH

Actuator Marking	No Marking
Actuator Type	Button, Round
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Chassis Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Termination Style	Wireless
Type	Standard

DX80N Series

...

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Modulation or Protocol	Power - Output	Applications	Function	Frequency	Interface	Features	Operating Temperature (Min)	Operating Temperature (Max)	Sensor Type	Output Type
BANNER ENGINEERING DX80NHX2W-DIRE NB
BANNER ENGINEERING DX80N9DSTS NB	10 VDC	30 VDC	FHSS ISM	30 dBm	Wireless	Node	900 MHz	Connector	3.2km Range
BANNER ENGINEERING DX80N9Q45TH										-40 °C	70 °C	Humidity Temperature (IoT Finished Device)	Serial
BANNER ENGINEERING DX80N9X1W0P0ZTA			FHSS ISM	20 dBm	ISM	Node	900 MHz		IP67
BANNER ENGINEERING DX80N9X1S-P6	10 VDC	30 VDC	FHSS ISM	36 dBm	ISM	Gateway	900 MHz	Serial	IP67
BANNER ENGINEERING DX80N9X6S-P6-AN	10 VDC	30 VDC	FHSS ISM	30 dBm	ISM	Node	900 MHz	Serial	IP67
BANNER ENGINEERING DX80N9Q45VTP										-40 °C	70 °C	Temperature Vibration (IoT Finished Device)	Serial
BANNER ENGINEERING DX80N2X6S-P6	10 VDC	30 VDC	FHSS ISM	65 mW	ISM	Gateway	2.4 GHz	Serial	IP67
BANNER ENGINEERING DX80N9Q45VA-BK										-40 °C	70 °C	Temperature Vibration	Serial
BANNER ENGINEERING DX80N9X6S-PM8L	10 VDC	30 VDC	FHSS ISM	1 W	ISM	Switch	900 MHz		IP67
