1408152-1

Active

TE Connectivity AMP Connectors

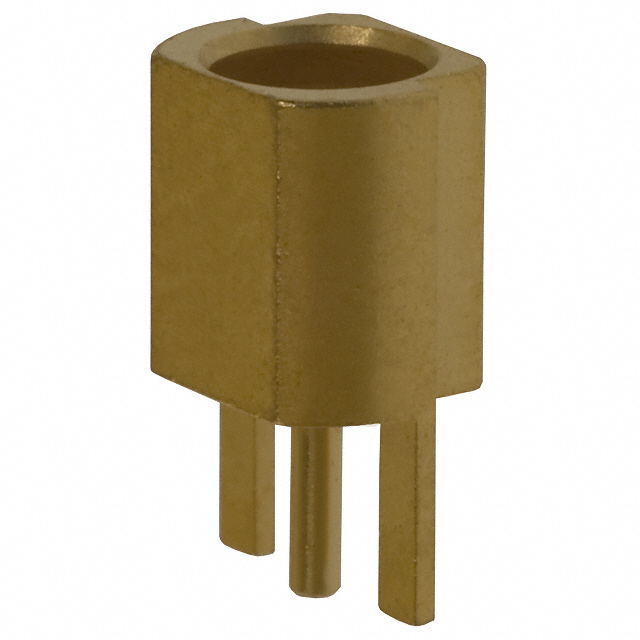

CONN MMCX JACK STR 50OHM EDGEMNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MMCX JACK STR 50OHM EDGEMNT

Technical Specifications

Parameters and characteristics for this part

Specification	1408152-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

CONN MMCX JACK STR 50OHM EDGEMNT

Part	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Frequency - Max [Max]	Body Finish	Contact Termination	Mounting Type	Impedance	Shield Termination	Housing Color	Voltage Rating	Mating Cycles	Connector Type	Center Contact Plating	Center Contact Material	Dielectric Material	Number of Ports	Body Material
TE Connectivity AMP Connectors 1408152-1	Snap-On	155 °C	-55 °C	MMCX	6000 MHz	Gold	Solder	Board Edge, Cutout, Surface Mount	50 Ohms	Solder	Gold	170 V	500	Female Socket, Jack	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MMCX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
