153206-2000-RB-WA

Active

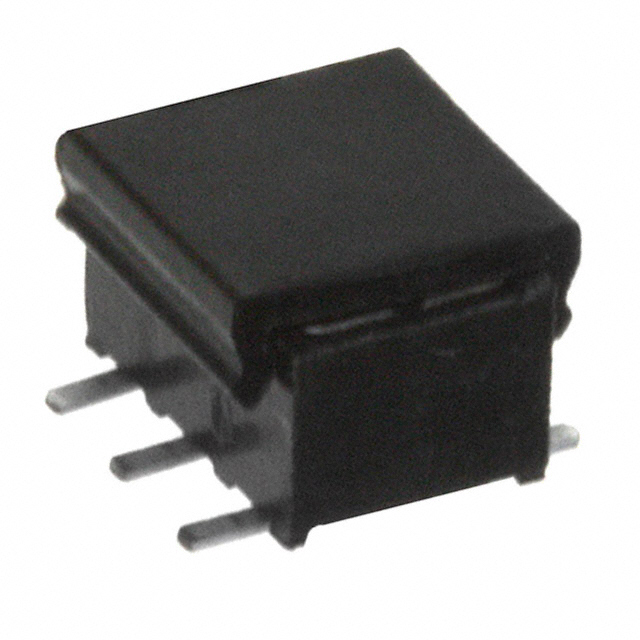

CONN RCPT 6POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

CONN RCPT 6POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	153206-2000-RB-WA	153206 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height	0.129 in	0.129 in
Insulation Height	3.28 mm	3.28 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN RCPT 6POS 0.079 GOLD SMD

Part	Contact Finish - Mating	Number of Positions	Connector Type	Number of Positions Loaded	Termination	Contact Shape	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Insulation Color	Material Flammability Rating	Style	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features
3M 153206-2000-RB	Gold	6	Receptacle, Bottom or Top Entry	All	Solder	Square	0.129 in	3.28 mm	0.079 in	2 mm	2	Black	UL94 V-0	Board to Board, Cable	Female Socket	0.079 in	2 mm	Copper Alloy	Surface Mount	30 Áin	0.76 Ám	Push-Pull	Tin	500 V	105 ░C	-55 °C
3M 153206-2000-RB-WA	Gold	6	Receptacle, Bottom or Top Entry	All	Solder	Square	0.129 in	3.28 mm	0.079 in	2 mm	2	Black	UL94 V-0	Board to Board, Cable	Female Socket	0.079 in	2 mm	Copper Alloy	Surface Mount	30 Áin	0.76 Ám	Push-Pull	Tin	500 V	105 ░C	-55 °C	Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
