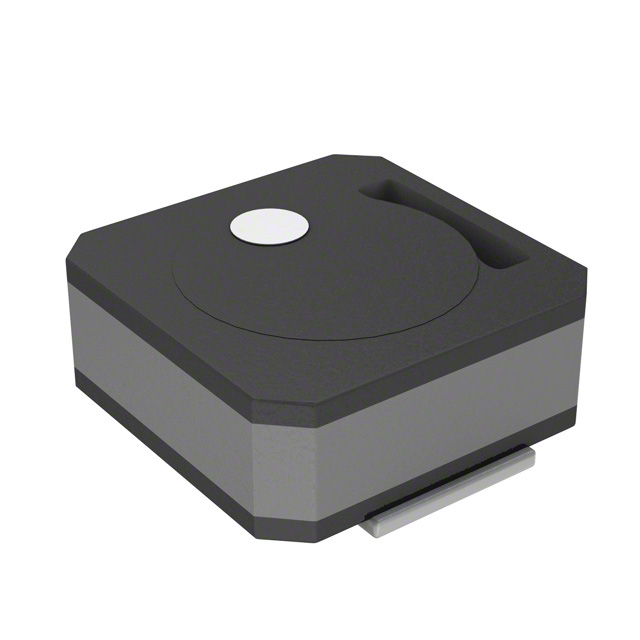

VLCF4018T-2R2N1R4-2
ActiveTDK Corporation
FIXED IND 2.2UH 1.44A 60MOHM SMD
VLCF4018T-2R2N1R4-2
ActiveTDK Corporation
FIXED IND 2.2UH 1.44A 60MOHM SMD
Description
General part information
VLCF4018T-2R2N1R4-2
2.2 µH Shielded Drum Core, Wirewound Inductor 1.44 A 60mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLCF4018T-2R2N1R4-2 |
|---|---|
| Current - Saturation (Isat) | 1.44 A |
| Current Rating | 1.44 A |
| DC Resistance (DCR) (Max) | 60 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
