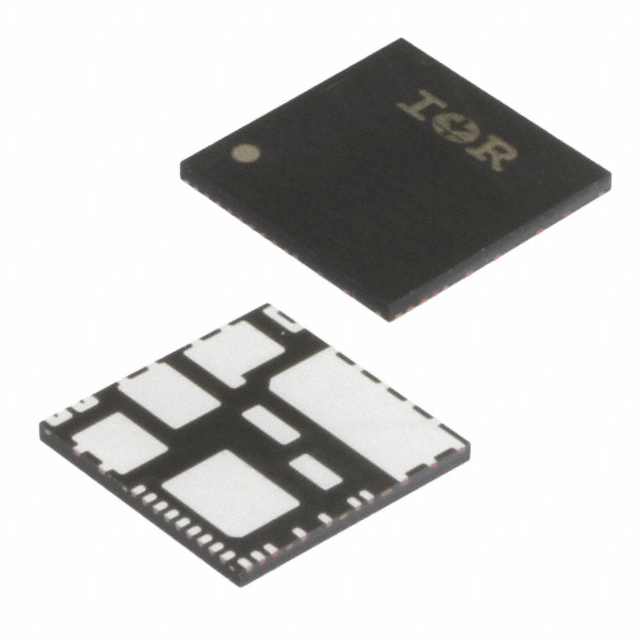

IRSM836-015MA

Unknown

Infineon Technologies

500 V, CIPOS™ NANO 3 PHASE OPEN SOURCE INTELLIGENT POWER MODULE (IPM) WITH MOSFET IN PQFN 12X12 PACKAGE.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IRSM836-015MA

Unknown

Infineon Technologies

500 V, CIPOS™ NANO 3 PHASE OPEN SOURCE INTELLIGENT POWER MODULE (IPM) WITH MOSFET IN PQFN 12X12 PACKAGE.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRSM836-015MA

Applications	AC Motors
Current - Output / Channel [custom]	1 A
Current - Peak Output	7 A
Fault Protection	UVLO
Features	Bootstrap Circuit
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	36-PowerVQFN
Rds On (Typ)	4.8 Ohm
Supplier Device Package	36-PQFN (12x12)
Technology	UMOS
Voltage - Load	400 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

IRSM836 Series

Part	Mounting Type	Rds On (Typ)	Features	Fault Protection	Technology	Current - Output / Channel [custom]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load	Current - Peak Output	Interface	Supplier Device Package	Load Type	Applications	Package / Case	Voltage - Load [Max]	Function	Motor Type - AC, DC	Current - Output
Infineon Technologies IRSM836-015MA	Surface Mount	4.8 Ohm	Bootstrap Circuit	UVLO	UMOS	1 A	Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V	400 V	7 A	Logic	36-PQFN (12x12)	Inductive	AC Motors	36-PowerVQFN
Infineon Technologies IRSM836-024MA	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	2 A
Infineon Technologies IRSM836-035MB	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V	400 V		Parallel	12x12 27-PQFN		Appliance	31-PowerVQFN		Driver - Fully Integrated Control and Power Stage	AC Synchronous	3 A
Infineon Technologies IRSM836-044MA	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	4 A
Infineon Technologies IRSM836-044MA	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	4 A
Infineon Technologies IRSM836-025MATR	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V	400 V		Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN		Driver - Fully Integrated Control and Power Stage	AC Synchronous	2 A
Infineon Technologies IRSM836-024MATR	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	800	$ 5.06

Description

General part information

IRSM836 Series

CIPOS™ Nano500 V, 6 Ω three-phase MOSFET basedintelligent power modulewith open source in QFN 12x12 package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including wide range of home appliacnes, low power industrial drives, and etc.
