EHRJ45P6
ActiveSwitchcraft Inc.

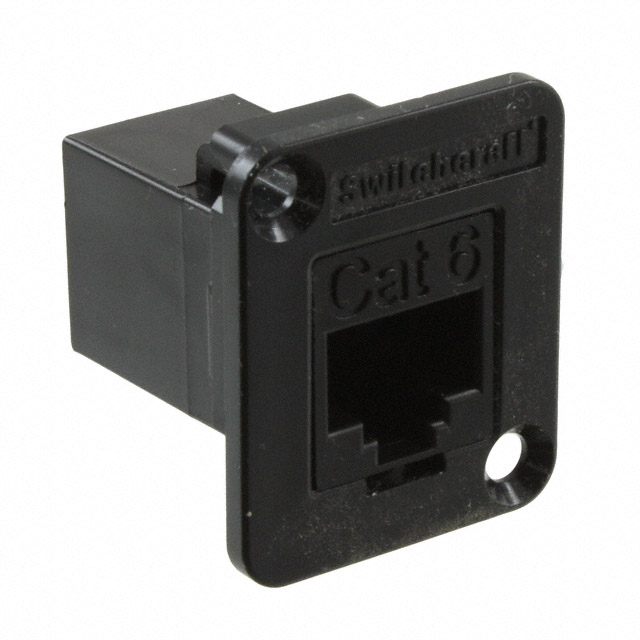

CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHRJ45P6
ActiveSwitchcraft Inc.
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHRJ45P6 | EHRJ45 Series |
|---|---|---|
| Connector Type | - | Jack |
| Contact Finish | - | Gold |
| Contact Material | - | Copper Alloy |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack | 8p8c (RJ45), Jack |
| Housing Material | Thermoplastic | Thermoplastic |
| LED Color | - | Does Not Contain LED |
| Mounting Type | Panel Mount, Square Flange | Panel Mount, Square Flange, Panel Mount, Flange |
| Number of Ports | - | 1 |
| Number of Positions/Contacts | - | 8p8c (RJ45, Ethernet) |
| Number of Rows | - | 1 |
| Orientation | - | 90 ° |
| Ratings | Cat6 | Cat6, Cat5e, Cat6a |
| Shell Material, Finish | Thermoplastic | Thermoplastic |
| Shield Material | Copper Alloy | Copper Alloy |
| Shielding | Unshielded | Unshielded, Shielded |
| Tab Direction | - | User Selectable |
| Termination | - | IDC, Color Coded Block |
| Type | Coupler | Coupler |
EHRJ45 Series
CONN RJ-45 F 8 POS IDT RA PANEL MOUNT 8 TERMINAL 1 PORT CAT 6
| Part | Contact Material | Tab Direction | Ratings | LED Color | Housing Material | Shielding | Number of Ports | Contact Finish | Number of Rows | Connector Type | Orientation | Termination | Number of Positions/Contacts | Type | Convert From (Adapter End) | Convert To (Adapter End) | Mounting Type | Shield Material | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EHRJ45P6IDC | Copper Alloy | User Selectable | Cat6 | Does Not Contain LED | Thermoplastic | Unshielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P6 | Cat6 | Thermoplastic | Unshielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Panel Mount, Square Flange | Copper Alloy | Thermoplastic | ||||||||||
Switchcraft Inc. EHRJ45P5ESIDC | Copper Alloy | User Selectable | Cat5e | Does Not Contain LED | Thermoplastic | Shielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P5EIDC | Copper Alloy | User Selectable | Cat5e | Does Not Contain LED | Thermoplastic | Unshielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P5ES | Cat5e | Thermoplastic | Shielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Panel Mount, Square Flange | Copper Alloy | Thermoplastic | ||||||||||
Switchcraft Inc. EHRJ45P6SIDC | Copper Alloy | User Selectable | Cat6 | Does Not Contain LED | Thermoplastic | Shielded | 1 | Gold | 1 | Jack | 90 ° | Color Coded Block, IDC | 8p8c (RJ45, Ethernet) | ||||||
Switchcraft Inc. EHRJ45P6S | Cat6 | Thermoplastic | Shielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Flange, Panel Mount | Copper Alloy | Thermoplastic | ||||||||||
Switchcraft Inc. EHRJ45P6AS | Cat6a | Thermoplastic | Shielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Panel Mount, Square Flange | Copper Alloy | |||||||||||
Switchcraft Inc. EHRJ45P5E | Cat5e | Thermoplastic | Unshielded | Coupler | Jack, 8p8c (RJ45) | 8p8c (RJ45), Jack | Flange, Panel Mount | Copper Alloy | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.04 | |
| 10 | $ 13.17 | |||
| 25 | $ 12.61 | |||
| 50 | $ 12.55 | |||
Description
General part information
EHRJ45 Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6 Unshielded
