51-404.036DF

Active

EAO

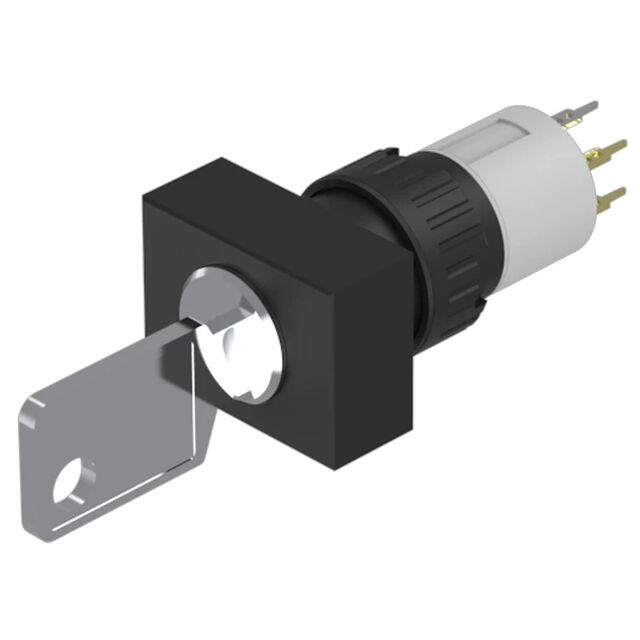

KEYLOCK SWITCH 2 POSITIONS FLUSH MOUNTING REST(A)-MAINTAINED LL 2NO UT 24X30 GOLD 311

Search across all available documentation for this part.

Active

EAO

KEYLOCK SWITCH 2 POSITIONS FLUSH MOUNTING REST(A)-MAINTAINED LL 2NO UT 24X30 GOLD 311

Technical Specifications

Parameters and characteristics for this part

KEYLOCK SWITCH 2 POSITIONS FLUSH MOUNTING REST(A)-MAINTAINED LL 2NO UT 24X30 GOLD 311

Part	Key Removable Positions	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Timing	Angle of Throw	Features	Voltage Rating - AC	Voltage Rating - DC	Depth Behind Flange	Switch Function	Termination Style	Circuit	Number of Positions	Current Rating (Amps)
EAO 51-404.036DF	1 only	Flat Key	55 °C	-25 °C	Not Specified	90 °	IP65	42 V	42 V	44.5 mm	Off-On	PC Pin, Solder Lug	DPST-NO	2	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO 100mA (AC/DC) 42 VAC 42 VDC Panel Mount
