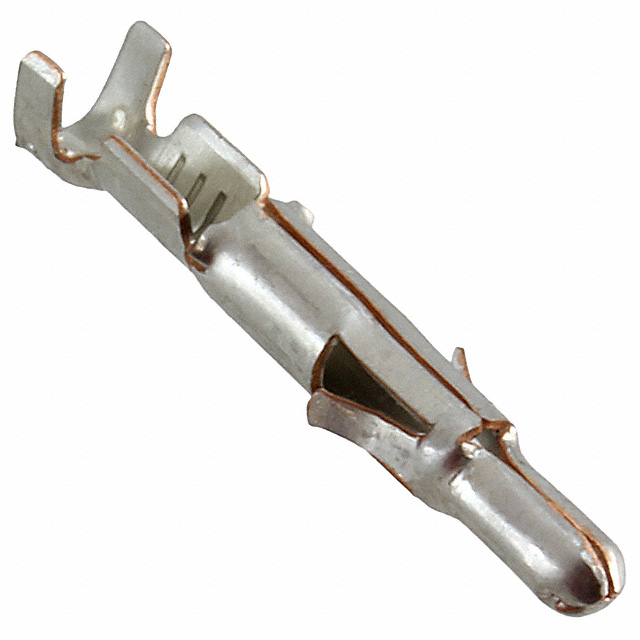

926896-3
ActiveTE Connectivity AMP Connectors
CONN PIN 18-24AWG TIN CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
926896-3
ActiveTE Connectivity AMP Connectors
CONN PIN 18-24AWG TIN CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 926896-3 | 926896 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 31.5 µin |
| Contact Finish Thickness | - | 0.8 µm |
| Contact Material | Brass | Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
926896 Series
CONN PIN 18-24AWG TIN CRIMP
| Part | Type | Contact Termination | Contact Finish | Pin or Socket | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926896-3 | Stamped | Crimp | Tin | Pin | Brass | 24 AWG | 17.5 AWG | ||
TE Connectivity AMP Connectors 926896-1 | Stamped | Crimp | Tin | Pin | Brass | 24 AWG | 17.5 AWG | ||
TE Connectivity AMP Connectors 926896-7 | Stamped | Crimp | Gold | Pin | Brass | 24 AWG | 17.5 AWG | 31.5 µin | 0.8 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.22 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 3000 | $ 0.11 | |||
Description
General part information
926896 Series
Pin Contact Tin Crimp 18-24 AWG Stamped
