8282-6SG-318
ActiveConxall/Switchcraft

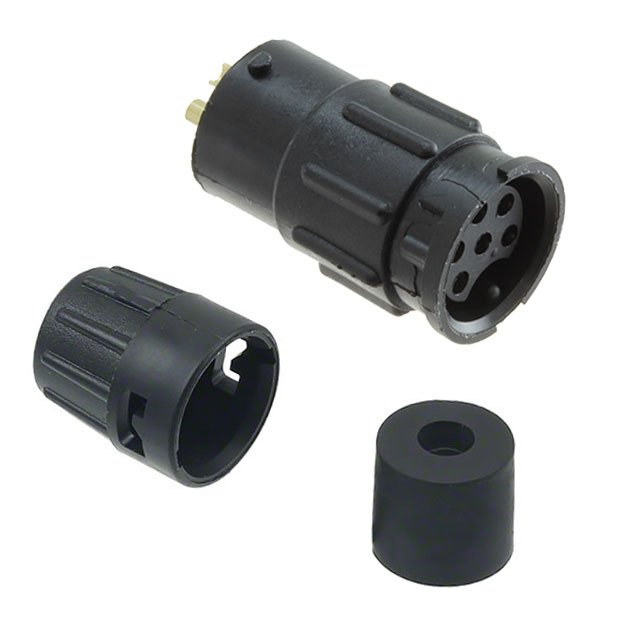

CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8282-6SG-318
ActiveConxall/Switchcraft
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8282-6SG-318 | 8282-6SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 - 0.25 in |
| Cable Opening | - | 0.19 - 0.22 in |
| Cable Opening | - | 4.83 - 5.59 mm |
| Cable Opening | - | 5.33 - 6.35 mm |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening [Max] [custom] | 0.2 in | 0.18 - 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm | 4.57 - 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm | 4.06 - 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.16 - 0.18 in |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
8282-6SG Series
CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Orientation | Primary Material | Backshell Material, Plating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Contact Material | Features | Fastening Type | Color | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Ingress Protection | Applications | Connector Type | Contact Finish - Mating | Number of Positions | Mounting Type | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 8282-6SG-519 | Keyed | Plastic | Nylon, Polyamide (PA) | 0.21 in | 0.19 in | 4.83 mm | 5.33 mm | Brass | Backshell | Bayonet Lock | Black | 600 V | Varies by Wire Gauge | -40 °C | 115 °C | Unshielded | Weathertight | Automotive, Communication Systems, Instrumentation | Receptacle, Female Sockets | Gold | 6 | Free Hanging (In-Line) | |||||||||
Conxall/Switchcraft 8282-6SG-315 | Keyed | Plastic | Nylon, Polyamide (PA) | Brass | Backshell | Bayonet Lock | Black | 600 V | Varies by Wire Gauge | -40 °C | 115 °C | Unshielded | Weathertight | Automotive, Communication Systems, Instrumentation | Receptacle, Female Sockets | Gold | 6 | Free Hanging (In-Line) | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||||
Conxall/Switchcraft 8282-6SG-522 | Keyed | Plastic | Nylon, Polyamide (PA) | 0.25 in | 0.22 in | 5.59 mm | 6.35 mm | Brass | Backshell | Bayonet Lock | Black | 600 V | Varies by Wire Gauge | -40 °C | 115 °C | Unshielded | Weathertight | Automotive, Communication Systems, Instrumentation | Receptacle, Female Sockets | Gold | 6 | Free Hanging (In-Line) | |||||||||
Conxall/Switchcraft 8282-6SG-311 | Keyed | Plastic | Nylon, Polyamide (PA) | Brass | Backshell | Bayonet Lock | Black | 600 V | Varies by Wire Gauge | -40 °C | 115 °C | Unshielded | Weathertight | Automotive, Communication Systems, Instrumentation | Receptacle, Female Sockets | Gold | 6 | Free Hanging (In-Line) | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | ||||||||||
Conxall/Switchcraft 8282-6SG-516 | Keyed | Plastic | Nylon, Polyamide (PA) | Brass | Backshell | Bayonet Lock | Black | 600 V | Varies by Wire Gauge | -40 °C | 115 °C | Unshielded | Weathertight | Automotive, Communication Systems, Instrumentation | Receptacle, Female Sockets | Gold | 6 | Free Hanging (In-Line) | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | |||||||||
Conxall/Switchcraft 8282-6SG-318 | Keyed | Plastic | Nylon, Polyamide (PA) | Brass | Backshell | Bayonet Lock | Black | 600 V | Varies by Wire Gauge | -40 °C | 115 °C | Unshielded | Weathertight | Automotive, Communication Systems, Instrumentation | Receptacle, Female Sockets | Gold | 6 | Free Hanging (In-Line) | 0.18 in | 0.2 in | 4.57 mm | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 12.06 | |
Description
General part information
8282-6SG Series
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
