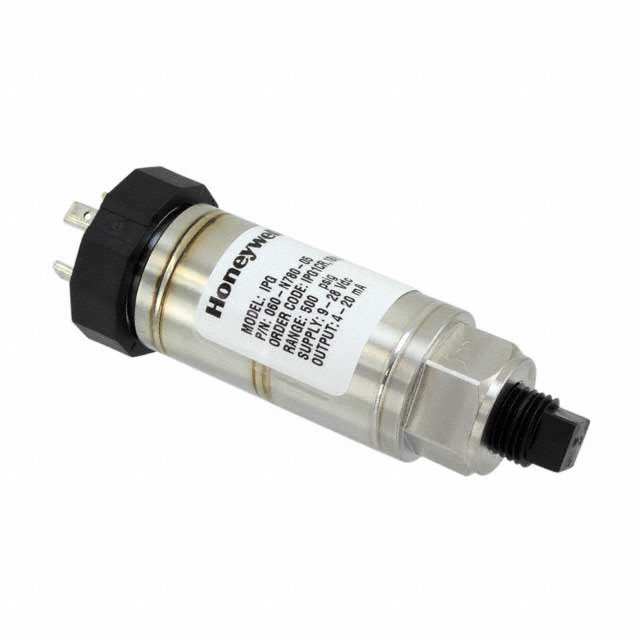

060-N780-05

Active

Honeywell Sensing and Productivity Solutions T&M

IND PRESSURE TRANSMITTER 500 PSI

Deep-Dive with AI

Search across all available documentation for this part.

060-N780-05

Active

Honeywell Sensing and Productivity Solutions T&M

IND PRESSURE TRANSMITTER 500 PSI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	060-N780-05	060-N780 Series

Accuracy	0.15 %	0.15 %
Applications	Industrial Automation	Industrial Automation
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure	1500 PSI	600 - 1500 PSI
Maximum Pressure	10342.14 kPa	4136.85 - 10342.14 kPa
Maximum Pressure	-	5171.07 - 15513.2 kPa
Maximum Pressure	-	750 - 2250 PSI
Operating Pressure	3447.38 kPa	750 - 6894.76 kPa
Operating Pressure	500 PSI	200 - 1000 PSI
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	20 mA	20 mA
Output [Min]	4 mA	4 mA
Output Type	Analog Current	Analog Current
Package / Case	Cylinder	Cylinder
Port Size	-	-
Port Size	-	1/4
Port Size	-	Male
Port Size [custom]	6.35 mm	6.35 mm
Port Size [custom]	B	B
Port Size [custom]	Female	Female
Port Size [custom]	0.25 "	0.25 "
Port Style	Threaded	Threaded
Pressure Type	Vented Gauge	Vented Gauge

060-N780 Series

IND PRESSURE TRANSMITTER 250 PSI

Part	Accuracy	Output Type	Port Style	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [custom]	Port Size [custom]	Port Size [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Max]	Output [Min]	Applications	Package / Case	Features	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Port Size [custom]	Port Size
Honeywell Sensing and Productivity Solutions T&M 060-N780-04	0.15 %	Analog Current	Threaded	250 PSI	1723.69 kPa	6.35 mm	B	Female	0.25 "	5171.07 kPa	750 PSI	20 mA	4 mA	Industrial Automation	Cylinder	Temperature Compensated	Vented Gauge	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions T&M 060-N780-05	0.15 %	Analog Current	Threaded	500 PSI	3447.38 kPa	6.35 mm	B	Female	0.25 "			20 mA	4 mA	Industrial Automation	Cylinder	Temperature Compensated	Vented Gauge	125 °C	-40 °C	1500 PSI	10342.14 kPa
Honeywell Sensing and Productivity Solutions T&M 060-N780-07	0.15 %	Analog Current	Threaded	1000 PSI	6894.76 kPa	6.35 mm	B	Female	0.25 "	13789.51 kPa	2000 PSI	20 mA	4 mA	Industrial Automation	Cylinder	Temperature Compensated	Vented Gauge	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions T&M 060-N780-06	0.15 %	Analog Current	Threaded	750 PSI	750 PSI	6.35 mm	B	Female	0.25 "	15513.2 kPa	2250 PSI	20 mA	4 mA	Industrial Automation	Cylinder	Temperature Compensated	Vented Gauge	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions T&M 060-N780-03	0.15 %	Analog Current	Threaded	200 PSI	1378.95 kPa							20 mA	4 mA	Industrial Automation	Cylinder	Temperature Compensated	Vented Gauge	125 °C	-40 °C	600 PSI	4136.85 kPa	1/4	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 290.50

Description

General part information

060-N780 Series

IND PRESSURE TRANSMITTER 500 PSI

Documents

Technical documentation and resources

No documents available
