MAX9945EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX9945
Deep-Dive with AI
Search across all available documentation for this part.
MAX9945EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX9945
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9945EVKIT+ | MAX9945 Series |
|---|---|---|
| Amplifier Type | General Purpose | General Purpose |
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 - Single | 1 - Single |
| Contents | Board(s) | Board(s) |
| Current - Input Bias | - | 0.05 pA |
| Current - Output / Channel | 25 mA | 25 mA |
| Current - Output / Channel [custom] | 25 mA | 25 mA |
| Current - Supply | - | 400 çA |
| Current - Supply (Main IC) | 400 µA | 400 µA |
| Gain Bandwidth Product | 3 MHz | 3 MHz |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | Single-Ended, Rail-to-Rail | Rail-to-Rail, Single-Ended |
| Package / Case | - | 8-MSOP, 8-TSSOP |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Slew Rate | 2.2 V/µs | 2.2 V/µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-uMAX/uSOP, 6-TDFN (3x3) |
| Utilized IC / Part | MAX9945 | MAX9945 |
| Voltage - Input Offset | - | 600 µV |
| Voltage - Supply Span (Max) | - | 38 V |
| Voltage - Supply Span (Min) | - | 4.75 V |
| Voltage - Supply, Single/Dual (±) [Max] | 2.4 V, 19 V, 38 V | 2.4 - 38 V |
| Voltage - Supply, Single/Dual (±) [Min] | 4.75 V, -2.4 V | -2.4 - 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 66.37 | |
MAX9945 Series
IC OPAMP GP 1 CIRCUIT 8UMAX
| Part | Gain Bandwidth Product | Output Type | Current - Output / Channel | Voltage - Supply Span (Max) [Max] | Current - Supply | Mounting Type | Number of Circuits | Current - Input Bias | Slew Rate | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input Offset | Package / Case | Package / Case [custom] | Package / Case | Amplifier Type | Voltage - Supply Span (Min) [Min] | Supplier Device Package | Supplied Contents | Utilized IC / Part | Channels per IC | Board Type | Current - Supply (Main IC) | Contents | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Current - Output / Channel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9945AUA+ | 3 MHz | Rail-to-Rail | 25 mA | 38 V | 400 çA | Surface Mount | 1 | 0.05 pA | 2.2 V/µs | 125 °C | -40 °C | 600 µV | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | General Purpose | 4.75 V | 8-uMAX/uSOP | |||||||||
Analog Devices Inc./Maxim Integrated MAX9945AUA+T | 3 MHz | Rail-to-Rail | 25 mA | 38 V | 400 çA | Surface Mount | 1 | 0.05 pA | 2.2 V/µs | 125 °C | -40 °C | 600 µV | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | General Purpose | 4.75 V | 8-uMAX/uSOP | |||||||||
Analog Devices Inc./Maxim Integrated MAX9945ATT+T | 3 MHz | Rail-to-Rail | 25 mA | 38 V | 400 çA | Surface Mount | 1 | 0.05 pA | 2.2 V/µs | 125 °C | -40 °C | 600 µV | General Purpose | 4.75 V | 6-TDFN (3x3) | ||||||||||||
Analog Devices Inc./Maxim Integrated MAX9945EVKIT+ | 3 MHz | Rail-to-Rail, Single-Ended | 25 mA | 2.2 V/µs | General Purpose | Board(s) | MAX9945 | 1 - Single | Fully Populated | 400 µA | Board(s) | 2.4 V, 19 V, 38 V | -2.4 V, 4.75 V | 25 mA |
Description
General part information
MAX9945 Series

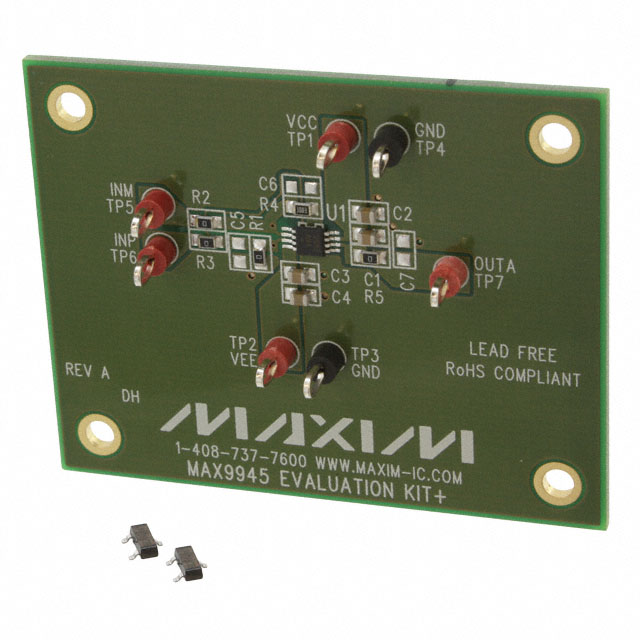

MAX9945 - 1 - Single Channels per IC General Purpose Amplifier Evaluation Board
