0002062101-03-W2

Active

Molex

3" PRE-CRIMP A2101 WHITE

Search across all available documentation for this part.

Active

Molex

3" PRE-CRIMP A2101 WHITE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

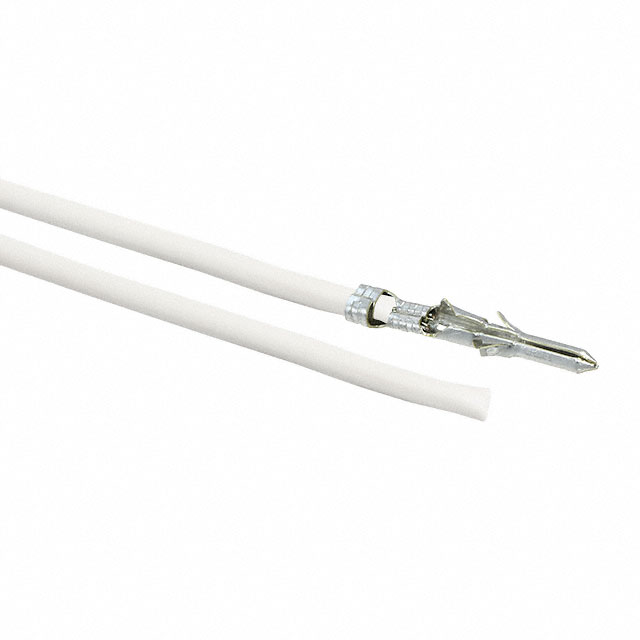

White 22 AWG Jumper Lead Pin to Cable (Round) Tin 3.00" (76.20mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0002062101-03-W2	0002062101 Series

Color	White	Red, White, Violet, Green, Black, Yellow, Blue, Brown, Slate
Contact End	Pin to Cable (Round)	Pin to Cable (Round)
Contact Finish	Tin	Tin
Contact Finish Thickness	0.51 µm	0.51 µm
Contact Finish Thickness	20 µin	20 µin
Length	76.2 mm	76.2 - 304.8 mm
Length	-	101.6 - 279.4 mm
Length	-	6 - 8 in
Length [x]	3 in	3 - 12 in
Number of Conductors	1	1
Number of Rows	1	1
Wire Gauge	22 AWG	18 - 24 AWG

2" PRE-CRIMP A2102 ORANGE

...

Part	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Contact Finish	Number of Rows	Number of Conductors	Contact End	Color	Length	Length [x]	Length [x]
Molex 0002062101-02-A0-D	0.51 µm	20 µin	20 AWG	Tin	1	1
Molex 0002062101-10-R0	0.51 µm	20 µin	20 AWG	Tin	1	1	Pin to Cable (Round)	Red	254 mm	10 in
Molex 0002062101-03-R0-D	0.51 µm	20 µin	20 AWG	Tin	1	1		Red	76.2 mm	3 in
Molex 0002062101-11-W4-D	0.51 µm	20 µin	24 AWG	Tin	1	1		White		11 in	279.4 mm
Molex 0002062101-02-V0	0.51 µm	20 µin	20 AWG	Tin	1	1	Pin to Cable (Round)	Violet
Molex 0002062101-03-G2	0.51 µm	20 µin	22 AWG	Tin	1	1	Pin to Cable (Round)	Green	76.2 mm	3 in
Molex 0002062101-03-W2	0.51 µm	20 µin	22 AWG	Tin	1	1	Pin to Cable (Round)	White	76.2 mm	3 in
Molex 0002062101-10-B9-D	0.51 µm	20 µin	18 AWG	Tin	1	1		Black	254 mm	10 in
Molex 0002062101-05-Y2	0.51 µm	20 µin	22 AWG	Tin	1	1	Pin to Cable (Round)	Yellow		5 in	127 mm
Molex 0002062101-11-G4-D	0.51 µm	20 µin	24 AWG	Tin	1	1		Green		11 in	279.4 mm
