A1P35S12M3-F

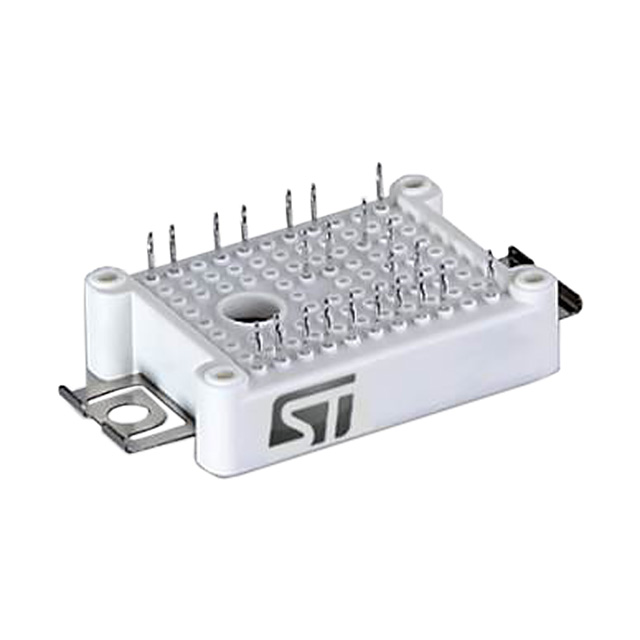

ActiveACEPACK1 SIXPACK TOPOLOGY, 1200 V, 35 A TRENCH-GATE FIELD STOP IGBT M SERIES, SOFT DIODE AND NTC
Deep-Dive with AI
Search across all available documentation for this part.
A1P35S12M3-F
ActiveACEPACK1 SIXPACK TOPOLOGY, 1200 V, 35 A TRENCH-GATE FIELD STOP IGBT M SERIES, SOFT DIODE AND NTC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1P35S12M3-F | A1P35S12M3-F Series |
|---|---|---|
| - | - | |
| Configuration | Three Phase Inverter | Three Phase Inverter |
| Current - Collector (Ic) (Max) [Max] | 35 A | 35 A |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Input | Standard | Standard |
| Input Capacitance (Cies) @ Vce | 2.154 nF | 2.154 nF |
| Mounting Type | Chassis Mount | Chassis Mount |
| NTC Thermistor | True | True |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Module | Module |
| Power - Max [Max] | 250 W | 250 W |
| Supplier Device Package | ACEPACK™ 1 | ACEPACK™ 1 |
| Vce(on) (Max) @ Vge, Ic | 2.45 V | 2.45 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
A1P35S12M3-F Series
ACEPACK1 sixpack topology, 1200 V, 35 A trench-gate field stop IGBT M series, soft diode and NTC
| Part | Current - Collector (Ic) (Max) [Max] | Input | Voltage - Collector Emitter Breakdown (Max) [Max] | Input Capacitance (Cies) @ Vce | Configuration | Package / Case | Mounting Type | Power - Max [Max] | NTC Thermistor | Supplier Device Package | IGBT Type | Operating Temperature [Max] | Operating Temperature [Min] | Vce(on) (Max) @ Vge, Ic |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics A1P35S12M3-F | 35 A | Standard | 1200 V | 2.154 nF | Three Phase Inverter | Module | Chassis Mount | 250 W | ACEPACK™ 1 | Trench Field Stop | 150 °C | -40 °C | 2.45 V | |
STMicroelectronics A1P35S12M3-F | ||||||||||||||
STMicroelectronics A1P35S12M3-F |
Description
General part information
A1P35S12M3-F Series
This power module is a sixpack topology in an ACEPACK™ 1 package with NTC, integrating the advanced trench gate field-stop technologies from STMicroelectronics. This new IGBT technology represents the best compromise between conduction and switching loss, to maximize the efficiency of any converter system up to 20 kHz.
