A1BXH-1636G
ActiveTE Connectivity AMP Connectors
IDC CABLE - ASR16H/AE16G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1BXH-1636G
ActiveTE Connectivity AMP Connectors
IDC CABLE - ASR16H/AE16G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1BXH-1636G | A1BXH Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Features | Strain Relief | Strain Relief |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 64 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.82 | |
| 10 | $ 5.65 | |||
| 25 | $ 5.24 | |||
| 50 | $ 4.95 | |||
| 100 | $ 4.68 | |||
| 250 | $ 4.35 | |||
| 500 | $ 4.11 | |||
| 1000 | $ 3.89 | |||
| 2500 | $ 3.66 | |||
A1BXH Series
IDC CABLE - ASR14H/AE14G/X
| Part | Pitch - Cable | Pitch - Cable | Number of Rows | Features | Pitch - Connector | Pitch - Connector | Shielding | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Cable Termination | Number of Positions | Length [x] | Length [x] | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1BXH-1436G | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 14 | 3 ft | 914.4 mm | ||
TE Connectivity AMP Connectors A1BXH-1636G | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 3 ft | 914.4 mm | 16 | ||
TE Connectivity AMP Connectors A1BXH-5036G | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 50 | 3 ft | 914.4 mm | ||
TE Connectivity AMP Connectors A1BXH-2636G | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 26 | 3 ft | 914.4 mm | ||
TE Connectivity AMP Connectors A1BXH-1036G | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 10 | 3 ft | 914.4 mm | ||
TE Connectivity AMP Connectors A1BXH-3036G | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 30 | 3 ft | 914.4 mm | ||
TE Connectivity AMP Connectors A1BXH-5036M | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 50 | 3 ft | 914.4 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1BXH-2436M | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 24 | 3 ft | 914.4 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1BXH-4036M | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 40 | 3 ft | 914.4 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1BXH-1436M | 0.05 " | 1.27 mm | 2 | Strain Relief | 0.1 in | 2.54 mm | Unshielded | Gold | 15 µin | 0.38 µm | Socket to Cable | IDC | 14 | 3 ft | 914.4 mm | Multiple, Ribbon |
Description
General part information
A1BXH Series

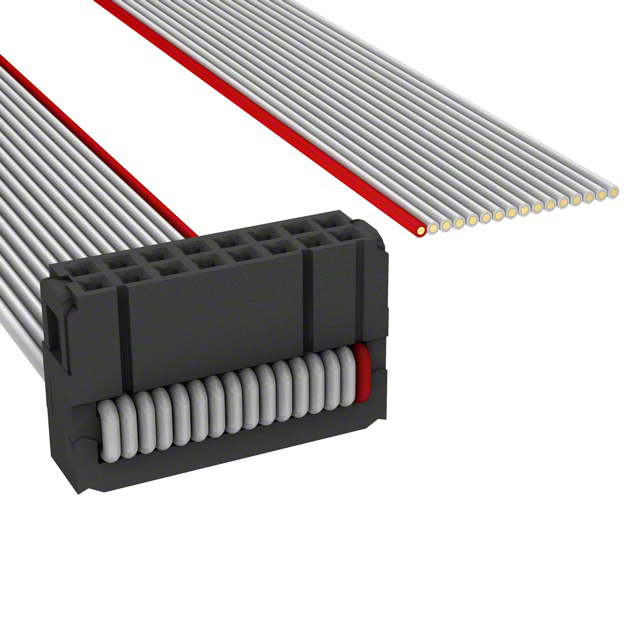

16 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
