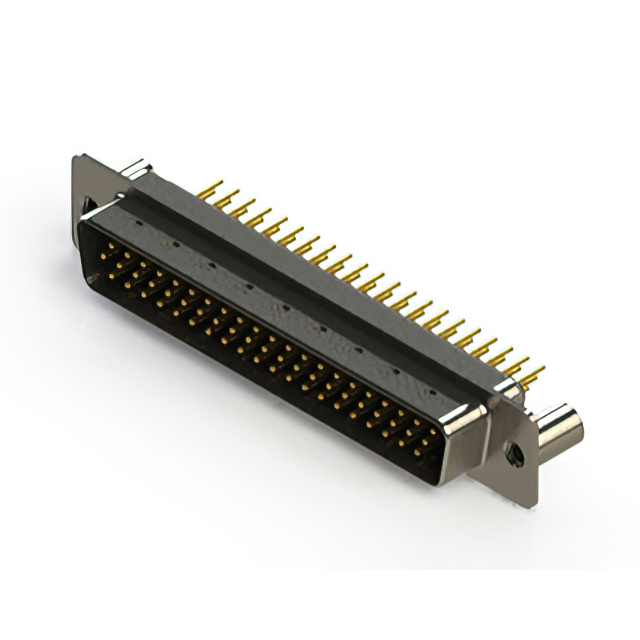

637-M62-630-BT3

Active

EDAC Inc.

MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-M62-630-BT3

Active

EDAC Inc.

MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-M62-630-BT3

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder

637-M62 Series

Part	Flange Feature	Number of Positions	Features	Contact Material	Dielectric Material	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Number of Rows	Mounting Type	Current Rating (Amps)	Color	Contact Finish	Connector Style	Shell Size, Connector Layout	Shell Material, Finish	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 637-M62-232-BN4	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C	Flash	3	Free Hanging (In-Line)	5 A	Black	Gold	D-Sub High Density	4	Nickel Plated Steel	UL94 V-0
EDAC Inc. 637-M62-230-BT4	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C	Flash	3	Through Hole	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0	Solder
EDAC Inc. 637-M62-630-BT3	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C		3	Through Hole	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0	Solder	0.76 Ám	30 Áin
EDAC Inc. 637-M62-630-BT4	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C		3	Through Hole	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0	Solder	0.76 Ám	30 Áin
EDAC Inc. 637-M62-630-BT2	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C		3	Through Hole	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0	Solder	0.76 Ám	30 Áin
EDAC Inc. 637-M62-232-BT4	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C	Flash	3	Free Hanging (In-Line)	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0
EDAC Inc. 637-M62-230-BT2	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C	Flash	3	Through Hole	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0	Solder
EDAC Inc. 637-M62-230-BN4	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C	Flash	3	Through Hole	5 A	Black	Gold	D-Sub High Density	4	Nickel Plated Steel	UL94 V-0	Solder
EDAC Inc. 637-M62-330-BN5	Housing/Shell (4-40)	62	Board Lock Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C		3	Through Hole	5 A	Black	Gold	D-Sub High Density	4	Nickel Plated Steel	UL94 V-0	Solder	0.38 µm	15 µin
EDAC Inc. 637-M62-330-BT3	Housing/Shell (4-40)	62	Grounding Indents Shielded	Copper Alloy	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Signal	-55 °C	125 °C		3	Through Hole	5 A	Black	Gold	D-Sub High Density	4		UL94 V-0	Solder	0.38 µm	15 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 15.35
Newark	Each	1	$ 17.30
		750	$ 16.66
		1000	$ 16.07
		2500	$ 15.51
		5000	$ 15.00

Description

General part information

637-M62 Series

62 Position D-Sub, High Density Plug, Male Pins Connector
