AT16077001
ObsoleteTXC CORPORATION

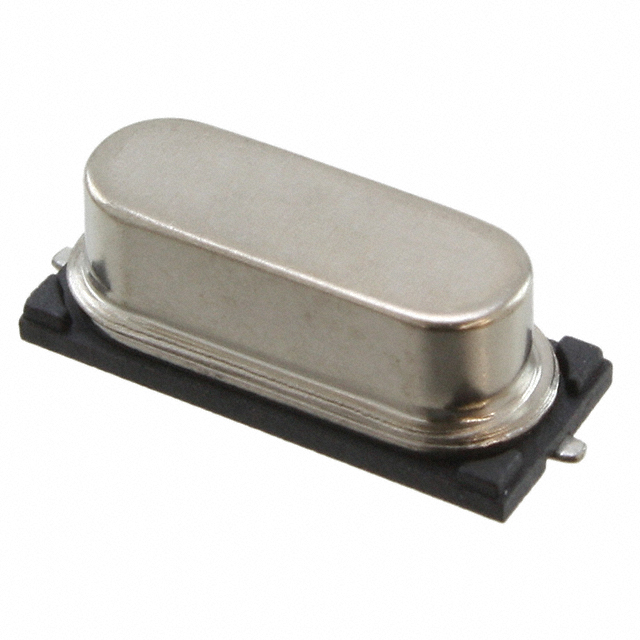

CRYSTAL 16.0000MHZ 18PF SMD
AT16077001
ObsoleteTXC CORPORATION
CRYSTAL 16.0000MHZ 18PF SMD
Description
General part information
AT16077001
16 MHz ±30ppm Crystal 18pF 50 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | AT16077001 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 16 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.161 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | HC-49/US |
| Package Name | HC-49S |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.492 in, 0.449 in |
| Size / Dimension Width | 0.189 in |
| Type | MHz Crystal |
