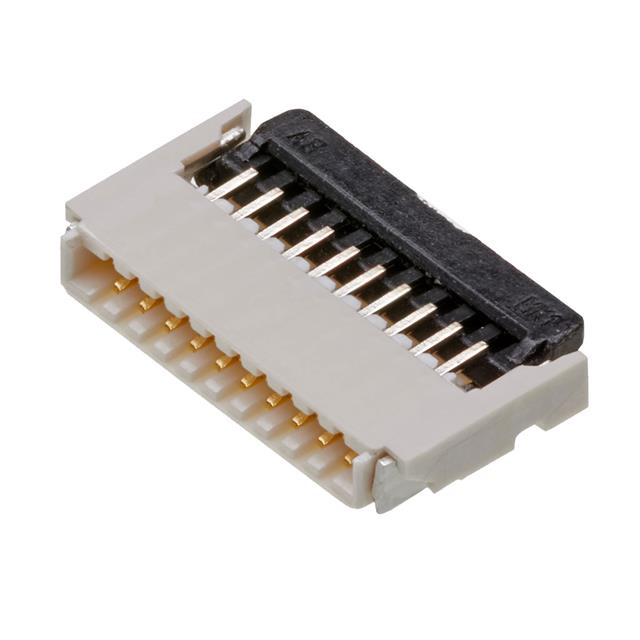

Specification	5034802800

Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Cable End Type	Tapered, Straight
Connector/Contact Type	Top, Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.039 in
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 HB, UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	28
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

503480 Series

Part	Flat Flex Type	Actuator Material	Operating Temperature (Min)	Operating Temperature (Max)	Locking Feature	Termination	Height Above Board	Cable End Type	Mounting Type	Housing Material	FFC, FCB Thickness	Contact Material	Material Flammability Rating	Connector/Contact Type	Contact Finish	Pitch	Number of Positions	Voltage Rating	Features	Mating Cycles	Actuator Color	Housing Color	Current Rating	Contact Finish Thickness
Molex 5034802400	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tabbed	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 HB UL94 V-0	Bottom Contacts Top	Gold	0.02 in	24 pos	50 V	Solder Retention	10 cycles	Black	White	0.5 A	3.94 µin
Molex 5034802000	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 HB UL94 V-0	Bottom Contacts Top	Gold	0.02 in	20	50 V	Solder Retention
Molex 5034800820
Molex 5034801040	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 V-0	Bottom Contacts Top	Gold	0.02 in	10	50 V	Solder Retention	10 cycles	Black	White	0.5 A	3.94 µin
Molex 5034800800	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 HB UL94 V-0	Bottom Contacts Top	Gold	0.02 in	8	50 V	Solder Retention	10 cycles	Black	White	0.5 A	3.94 µin
Molex 5034801440	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 V-0	Bottom Contacts Top	Gold	0.02 in	14	50 V	Solder Retention	10 cycles	Black	White	0.5 A	3.94 µin
Molex 5034802040	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 V-0	Bottom Contacts Top	Gold	0.02 in	20	50 V	Solder Retention	10 cycles	Black	White	0.5 A	3.94 µin
Molex 5034800500
Molex 5034801200	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 HB UL94 V-0	Bottom Contacts Top	Gold	0.02 in	12	50 V	Solder Retention
Molex 5034801700	FFC FPC	Glass Filled Nylon Polyamide (PA)	-40 °C	85 °C	Backlock Flip Lock	Solder	0.039 in	Straight Tapered	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	0.3 mm	Phosphor Bronze	UL94 HB UL94 V-0	Bottom Contacts Top	Gold	0.02 in	17	50 V	Solder Retention
