1375793-2

Active

TE Connectivity AMP Connectors

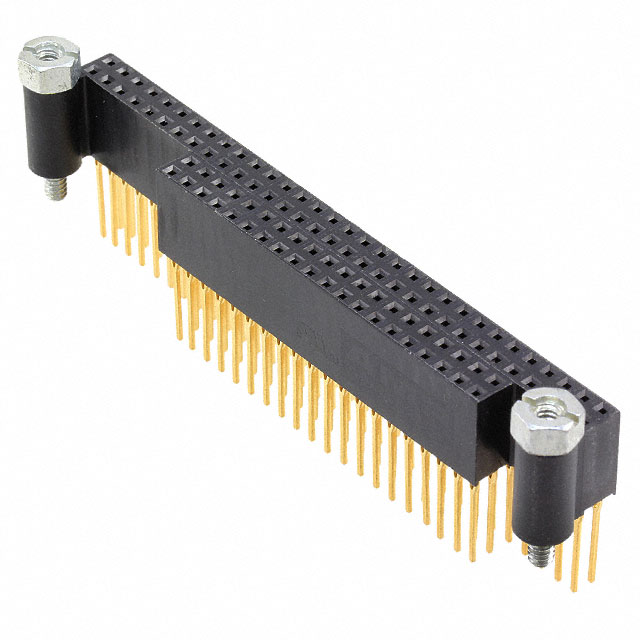

CONN STKTHRU PC/104 104POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN STKTHRU PC/104 104POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1375793-2

Color	Black
Connector Style	PC/104
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Screwlocks
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	104
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Press-Fit, Long Post

CONN STKTHRU PC/104 104POS PCB

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Style	Termination	Number of Positions Loaded	Features	Pitch [x]	Pitch [x]	Color	Contact Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 1375793-2	Through Hole	105 ░C	-55 °C	104	PC/104	Press-Fit, Long Post	All	Screwlocks	2.54 mm	0.1 in	Black	Gold	UL94 V-0	15 µin	0.38 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 27.79

General part information

104 Connector Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104
