6-1393292-3

Active

TE Connectivity AMP Connectors

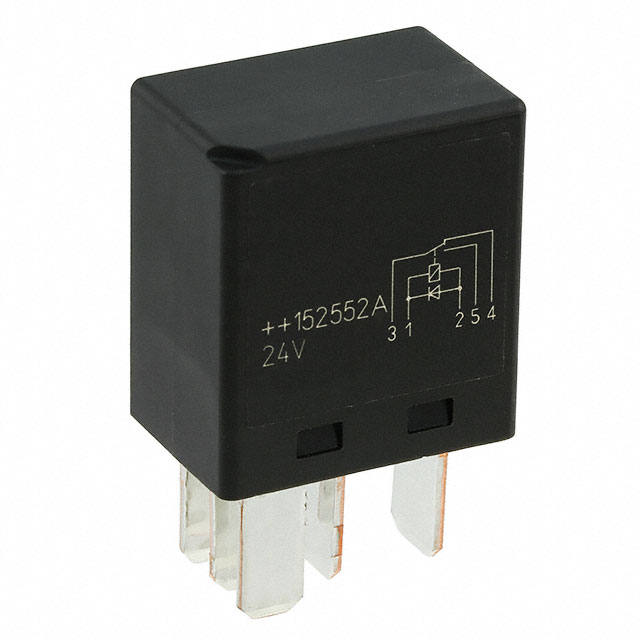

RELAY AUTOMOTIVE SPDT 30A 24V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY AUTOMOTIVE SPDT 30A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	6-1393292-3

Coil Power	1.34 W
Coil Resistance	430 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Alloy
Contact Rating (Current)	30 A
Features	Diode
Mounting Type	Socketable
Must Operate Voltage	14.4 VDC
Must Release Voltage	3.6 VDC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	24 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect

RELAY AUTOMOTIVE SPDT 30A 24V

Part	Contact Material	Coil Resistance	Switching Voltage	Coil Type	Contact Form	Contact Rating (Current)	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Features	Mounting Type	Coil Power	Coil Voltage	Termination Style
TE Connectivity AMP Connectors 6-1393292-3	Silver Alloy	430 Ohms	24 VDC	Non Latching	SPDT (1 Form C)	30 A	14.4 VDC	125 °C	-40 °C	3.6 VDC	Diode	Socketable	1.34 W	24 VDC	Multiple Sizes, Plug In, Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 30A 24V

Technical documentation and resources
