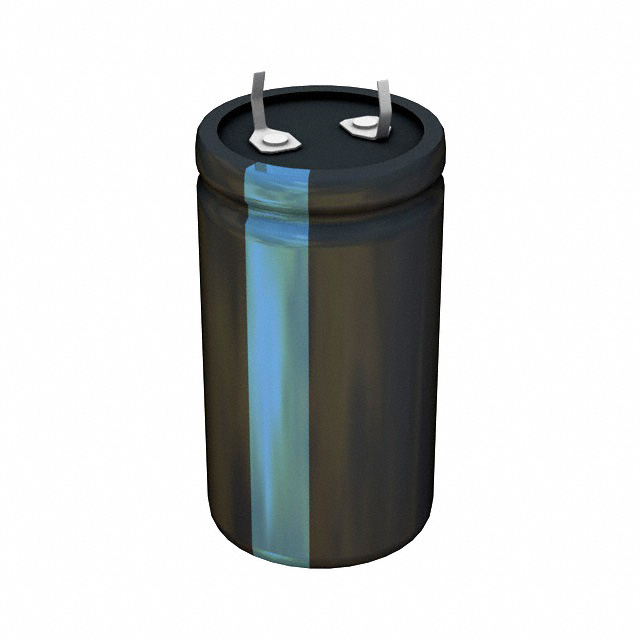

Specification	381EL181M400J452

Applications	General Purpose
Capacitance	180 µF
ESR (Equivalent Series Resistance)	820 mOhm
Height - Seated (Max)	1.772 in
Lead Spacing	0.394 in
Lifetime	7000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	900 mA, 1.26 A
Size / Dimension Diameter	0.984 in
Tolerance	20 %
Voltage - Rated	400 V
