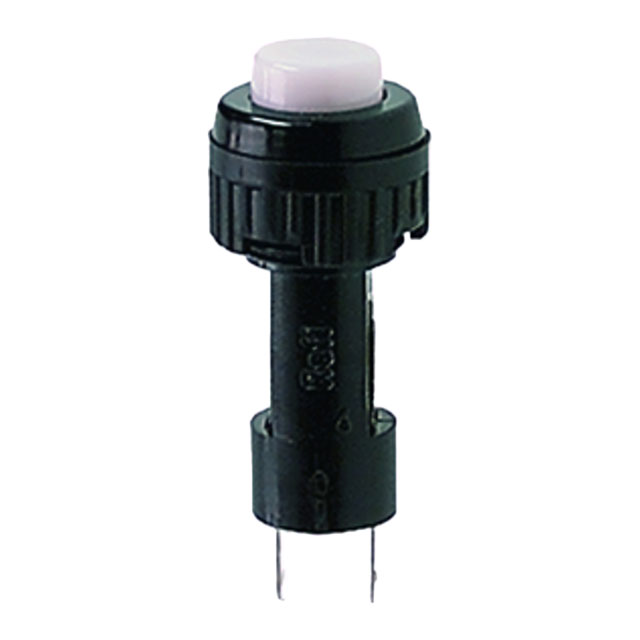

1.10.107.011/0507

Active

RAFI USA

SWITCH PUSH SPST-NO 100MA 24V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NO 100MA 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.10.107.011/0507	1.10107 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Green	Yellow, Green, Red, White
Current Rating (Amps)	100 mA	100 mA
Electrical Life	40000 Cycles	40000 Cycles
Ingress Protection	IP40	IP40
Mechanical Life	40000 Cycles	40000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	9.1 mm	9.1 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - AC	24 V	24 V
Voltage Rating - DC	24 V	24 V

SWITCH PUSH SPST-NO 100MA 24V

Part	Actuator Marking	Mechanical Life	Panel Cutout Dimensions [diameter]	Switch Function	Ingress Protection	Termination Style	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Actuator Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
RAFI USA 1.10.107.011/0404	No Marking	40000 Cycles	9.1 mm	Off-Mom	IP40	Solder Lug	24 V	40000 Cycles	100 mA	SPST-NO	Yellow	24 V	Button, Round	Standard	70 °C	-25 °C	Panel Mount, Front
RAFI USA 1.10.107.011/0507	No Marking	40000 Cycles	9.1 mm	Off-Mom	IP40	Solder Lug	24 V	40000 Cycles	100 mA	SPST-NO	Green	24 V	Button, Round	Standard	70 °C	-25 °C	Panel Mount, Front
RAFI USA 1.10.107.011/0301	No Marking	40000 Cycles	9.1 mm	Off-Mom	IP40	Solder Lug	24 V	40000 Cycles	100 mA	SPST-NO	Red	24 V	Button, Round	Standard	70 °C	-25 °C	Panel Mount, Front
RAFI USA 1.10.107.011/0205	No Marking	40000 Cycles	9.1 mm	Off-Mom	IP40	Solder Lug	24 V	40000 Cycles	100 mA	SPST-NO	White	24 V	Button, Round	Standard	70 °C	-25 °C	Panel Mount, Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
