Description
General part information
31059104

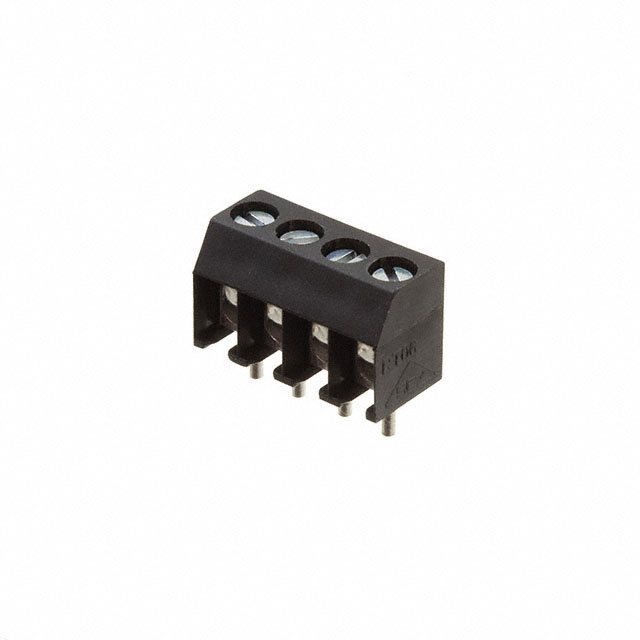

4 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 31059104 |
|---|---|
| Clamp Material - Plating | Copper Alloy |
| Color | Black |
| Current | 10 A |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 4 |
| Torque - Screw | 0.34 Nm |
| Voltage | 150 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
