1222-4012
ActiveAmphenol SV Microwave

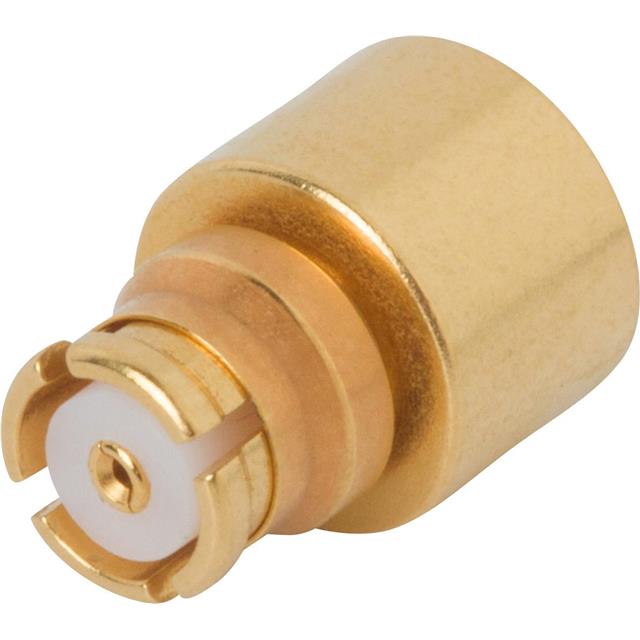

CONN SMP JACK R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1222-4012
ActiveAmphenol SV Microwave
CONN SMP JACK R/A 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1222-4012 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | Flexible |
| Cable Group | 0.047 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 34.06 | |
| 10 | $ 29.83 | |||
| 25 | $ 28.54 | |||
| 50 | $ 27.62 | |||
| 100 | $ 26.70 | |||
| 250 | $ 25.22 | |||
Description
General part information
1222-4012
SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
