CP303112GSA1
ActiveCLIFF Electronic Components Ltd
BNC INSERT 12GHZ GOLD BLACK
CP303112GSA1
ActiveCLIFF Electronic Components Ltd
BNC INSERT 12GHZ GOLD BLACK
Description
General part information
CP303112GSA1

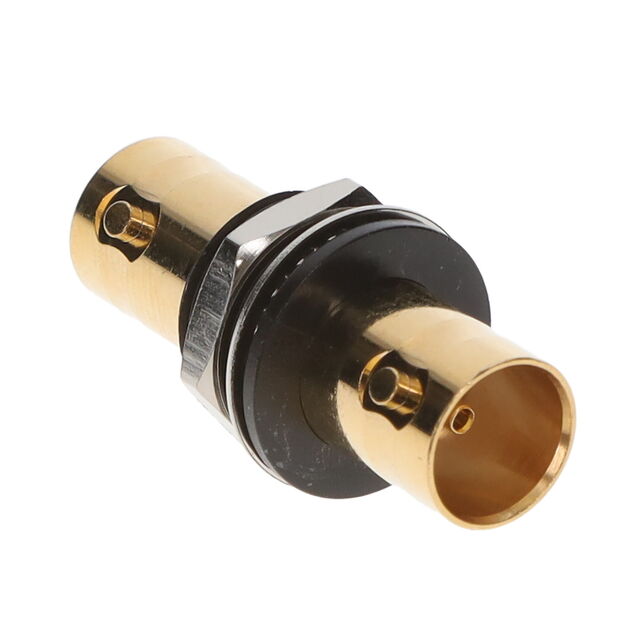

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | CP303112GSA1 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Impedance | 75 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Style | Straight |
