87474-1
ActiveTE Connectivity AMP Connectors

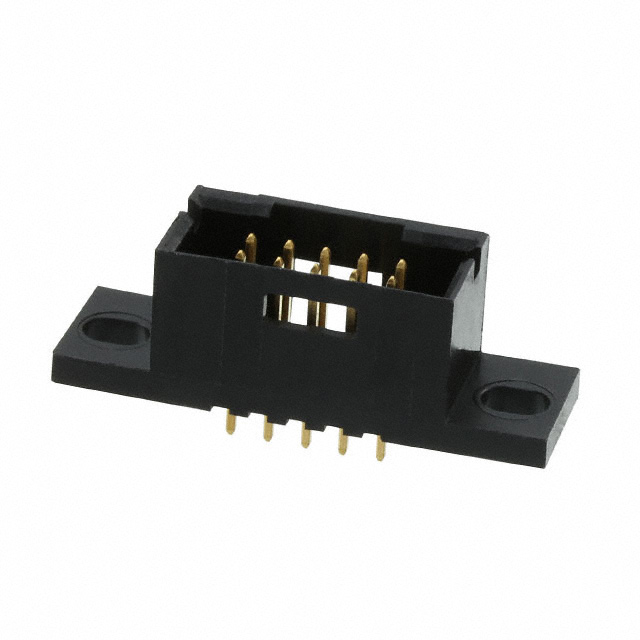

CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87474-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87474-1 | 87474 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Detent Lock | Detent Lock |
| Features | Mounting Flange | Mounting Flange |
| Insulation Color | Black | Black |
| Insulation Height | 0.44 in | 0.44 in |
| Insulation Height | 11.18 mm | 11.18 mm |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 10 - 60 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 13.55 mm | 13.55 mm |
| Overall Contact Length | 0.533 in | 0.533 in |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87474 Series
CONN HEADER VERT 60POS 2.54MM
| Part | Contact Material | Contact Finish Thickness - Post | Material Flammability Rating | Number of Positions Loaded | Termination | Overall Contact Length | Overall Contact Length | Number of Positions | Contact Finish - Mating | Insulation Material | Shrouding | Style | Contact Shape | Features | Mounting Type | Current Rating (Amps) | Connector Type | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating [x] | Contact Length - Mating [x] | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Rows | Insulation Height | Insulation Height | Insulation Color | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-87474-6 | Phosphor Bronze | Flash | UL94 V-0 | All | Solder | 13.55 mm | 0.533 in | 60 | Gold | Glass Filled, Nylon, Polyamide (PA) | Shrouded - 4 Wall | Board to Board, Cable | Square | Mounting Flange | Through Hole | 3 A | Header | Male Pin | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Detent Lock | 2 | 0.44 in | 11.18 mm | Black | Gold | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in |
TE Connectivity AMP Connectors 87474-4 | Phosphor Bronze | Flash | UL94 V-0 | All | Solder | 13.55 mm | 0.533 in | 34 | Gold | Glass Filled, Nylon, Polyamide (PA) | Shrouded - 4 Wall | Board to Board, Cable | Square | Mounting Flange | Through Hole | 3 A | Header | Male Pin | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Detent Lock | 2 | 0.44 in | 11.18 mm | Black | Gold | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in |
TE Connectivity AMP Connectors 87474-1 | Phosphor Bronze | Flash | UL94 V-0 | All | Solder | 13.55 mm | 0.533 in | 10 | Gold | Glass Filled, Nylon, Polyamide (PA) | Shrouded - 4 Wall | Board to Board, Cable | Square | Mounting Flange | Through Hole | 3 A | Header | Male Pin | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Detent Lock | 2 | 0.44 in | 11.18 mm | Black | Gold | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in |
TE Connectivity AMP Connectors 87474-7 | Phosphor Bronze | Flash | UL94 V-0 | All | Solder | 13.55 mm | 0.533 in | 50 | Gold | Glass Filled, Nylon, Polyamide (PA) | Shrouded - 4 Wall | Board to Board, Cable | Square | Mounting Flange | Through Hole | 3 A | Header | Male Pin | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | Detent Lock | 2 | 0.44 in | 11.18 mm | Black | Gold | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.39 | |
| 10 | $ 4.73 | |||
| 144 | $ 4.23 | |||
| 576 | $ 3.93 | |||
| 1008 | $ 3.51 | |||
Description
General part information
87474 Series
Connector Header Through Hole 10 position 0.100" (2.54mm)
