228DD1S1AAFAMSC

Active

CTS Electrocomponents

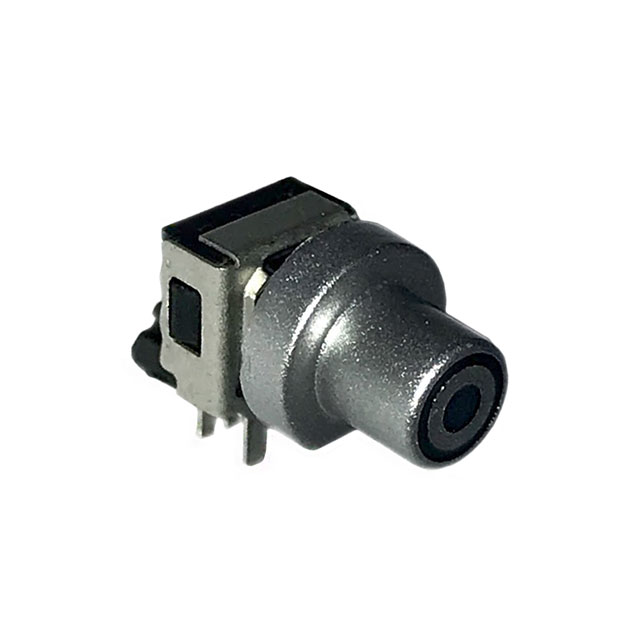

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

228DD1S1AAFAMSC

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.27
		10	$ 1.84
		25	$ 1.70
		80	$ 1.52
		230	$ 1.38
		440	$ 1.30
		945	$ 1.20
		2400	$ 1.10
		4900	$ 1.02

Description

General part information

228DD1S Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Specification	228DD1S1AAFAMSC	228DD1S Series

Actuator Length, Right Angle	-	2.7 mm
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Round Button	Round Button, Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Amber, LED	Green, Yellow, LED, Red, Amber, Green/Red, Blue, Blue/Red, Amber/White, White, Amber/Red
Illumination Voltage (Nominal)	-	1.7 - 3 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Force	220 gf	220 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	6.8 mm	6.8 mm
Outline [y]	5 mm	5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

Part	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Termination Style	Actuator Length, Right Angle	Actuator Orientation	Mounting Type	Circuit	Actuator Type	Illumination Type, Color	Outline [y]	Outline [x]	Mechanical Life	Illumination	Switch Function	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force
CTS Electrocomponents 228DD1S1AYGFARA	0.05 A, 12 VDC	1.9 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Green, LED, Yellow	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1ARFAMSB	0.05 A, 12 VDC	1.7 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	LED, Red	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1AYGFAMBC	0.05 A, 12 VDC	1.9 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Green, LED, Yellow	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1AAFABBB	0.05 A, 12 VDC		PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Amber, LED	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1AYGFABBB	0.05 A, 12 VDC	1.9 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Green, LED, Yellow	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1ARGFABBA	0.05 A, 12 VDC	1.7 VDC, 1.9 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Green/Red, LED	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1ABFAMBC	0.05 A, 12 VDC	3 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Blue, LED	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1AGFABBC	0.05 A, 12 VDC	1.9 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Green, LED	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1AAFAN	0.05 A, 12 VDC		PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Amber, LED	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
CTS Electrocomponents 228DD1S1ARBFAAB	0.05 A, 12 VDC	1.7 VDC, 3 VDC	PC Pin	2.7 mm	Side Actuated	Through Hole, Right Angle	SPST-NO	Round Button	Blue/Red, LED	5 mm	6.8 mm	100000 Cycles	Illuminated	Off-Mom	0.25 mm	70 °C	-25 °C	220 gf
