UMX512
ActiveSI PPIN HERMETIC MELF STYLE B MELF ESD BAG ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
UMX512
ActiveSI PPIN HERMETIC MELF STYLE B MELF ESD BAG ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UMX512 | SMX500-Ceramic-MELF-SMT-PIN Series |
|---|---|---|
| Capacitance @ Vr, F | - | 0.5 - 0.6 pF |
| Current - Max | - | 1 A |
| Diode Type | - | PIN - Single |
| null | - | |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 150 °C |
| Package / Case | - | 1208 |
| Package / Case | - | 3020 Metric |
| Resistance @ If, F | - | 600 - 700 mOhm |
| Supplier Device Package | - | M1 |
| Voltage - Peak Reverse (Max) | - | 500 V |
SMX500-Ceramic-MELF-SMT-PIN Series
Ceramic-MELF-Surface-Mount-PIN
| Part | Current - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Peak Reverse (Max) [Max] | Diode Type | Capacitance @ Vr, F | Resistance @ If, F | Package / Case | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SM0502-M1 | 1 A | -55 °C | 150 °C | 500 V | PIN - Single | 0.5 pF | 700 mOhm | 1208 | 3020 Metric | M1 |
Microchip Technology SMX0504-M1 | 1 A | -55 °C | 150 °C | 500 V | PIN - Single | 0.6 pF | 600 mOhm | 1208 | 3020 Metric | M1 |
Microchip Technology UMX512 | ||||||||||
Microchip Technology SMX0504-M1/TR | 1 A | -55 °C | 150 °C | 500 V | PIN - Single | 0.6 pF | 600 mOhm | 1208 | 3020 Metric | M1 |
Microchip Technology SM0504-M1 | 1 A | -55 °C | 150 °C | 500 V | PIN - Single | 0.6 pF | 600 mOhm | 1208 | 3020 Metric | M1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.09 | |
| Microchip Direct | N/A | 1 | $ 6.00 | |
| 50 | $ 5.75 | |||
| 100 | $ 5.42 | |||
| 250 | $ 5.18 | |||
| 500 | $ 4.98 | |||
| 1000 | $ 4.87 | |||
| Newark | Each | 100 | $ 5.42 | |
| 250 | $ 5.42 | |||
| 500 | $ 5.42 | |||
Description
General part information
SMX500-Ceramic-MELF-SMT-PIN Series

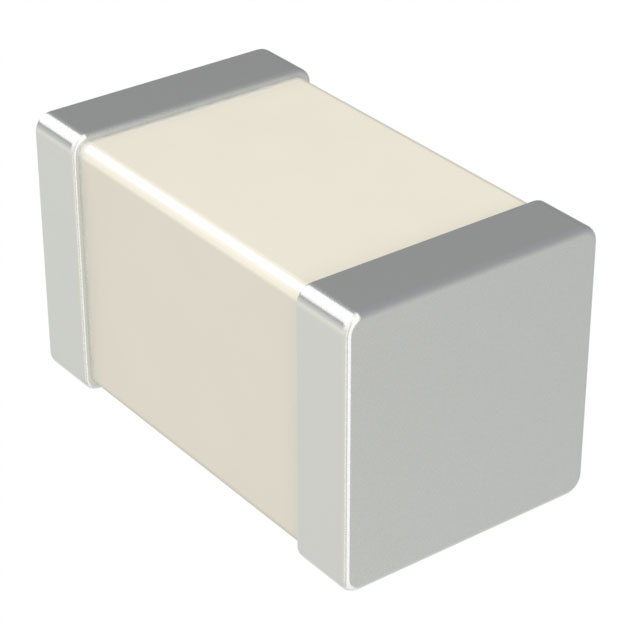

This line of ‘MELF’ high power PIN diodes are hermetically sealed surface mount packaged devices with full face bonded chips for low inductance construction. The MELF ceramic package has square end terminations which are ideal for surface mount and pick and place operations. The PIN diode chips are coated with a special hard glass passivation which is required for high power applications and to enhance the reliability resulting in MTBFs of greater than one million hours. RoHS compliant versions of these products meet RoHS requirements per EU directive.
