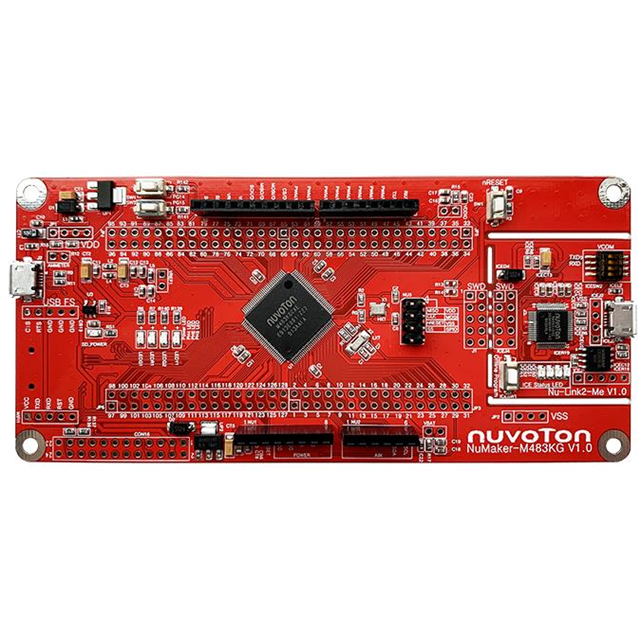

NK-M483KG

Active

Nuvoton Technology Corporation

DEVELOPMENT BOARD OF NUMICRO M48

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NK-M483KG

Active

Nuvoton Technology Corporation

DEVELOPMENT BOARD OF NUMICRO M48

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.56

Description

General part information

M483 Series

M483KGCAE2A NuMaker NuMicro® ARM® Cortex®-M4 MCU 32-Bit Embedded Evaluation Board

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NK-M483KG	M483 Series

Board Type	Evaluation Platform	Evaluation Platform
Connectivity	-	LINbus, EBI/EMI, CANbus, USB, SPI, SmartCard, SCI, I2C
Contents	Board(s)	Board(s)
Core Processor	ARM® Cortex®-M4	ARM® Cortex®-M4F, ARM® Cortex®-M4
Core Size	-	32-Bit Single-Core
Data Converters	-	D/A 1x12b, A/D 16x12b SAR, D/A 2x12b, A/D 24x12b SAR
Interconnect System	Arduino R3 Shield	Arduino R3 Shield
Mounting Type	Fixed	Surface Mount, Fixed
Number of I/O	-	52 - 100 I/O
Operating Temperature	-	105 °C
Operating Temperature	-	-40 °C
Oscillator Type	-	External, Internal
Package / Case	-	128-LQFP, 64-LQFP
Peripherals	-	LCD, DMA, WDT, PWM, I2S, LVR, Brown-out Detect/Reset, POR
Platform	NuMaker	NuMaker
Program Memory Size	-	128 - 256 KB
Program Memory Type	-	FLASH
RAM Size	-	64 - 128 K
Speed	-	192 MHz
Supplier Device Package	-	128-LQFP (14x14), 64-LQFP (7x7)
Type	MCU 32-Bit	MCU 32-Bit
Utilized IC / Part	M483KGCAE2A	M483KGCAE2A
Voltage - Supply (Vcc/Vdd)	-	1.8 V
Voltage - Supply (Vcc/Vdd)	-	3.6 V

M483 Series

IC MCU 32BIT 256KB FLASH 128LQFP

Part	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Peripherals	Supplier Device Package	Program Memory Size	Package / Case	Connectivity	Oscillator Type	Program Memory Type	Mounting Type	Number of I/O	RAM Size	Speed	Data Converters	Core Processor	Platform	Board Type	Utilized IC / Part	Type	Interconnect System	Contents
Nuvoton Technology Corporation M483KGCAE	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT	128-LQFP (14x14)	256 KB	128-LQFP	CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB	External, Internal	FLASH	Surface Mount	100 I/O	128 K	192 MHz	A/D 16x12b SAR, D/A 1x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation NK-M483KG													Fixed					ARM® Cortex®-M4	NuMaker	Evaluation Platform	M483KGCAE2A	MCU 32-Bit	Arduino R3 Shield	Board(s)
Nuvoton Technology Corporation M483SGCAE	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT	64-LQFP (7x7)	256 KB	64-LQFP	CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB	External, Internal	FLASH	Surface Mount	52	128 K	192 MHz	A/D 16x12b SAR, D/A 1x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation M483KGCAE2A	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT	128-LQFP (14x14)	256 KB	128-LQFP	CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB	External, Internal	FLASH	Surface Mount	100 I/O	128 K	192 MHz	A/D 16x12b SAR, D/A 2x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation M483SGCAE2A	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT	64-LQFP (7x7)	256 KB	64-LQFP	CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB	External, Internal	FLASH	Surface Mount	52	128 K	192 MHz	A/D 24x12b SAR, D/A 1x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation M483SE8AE	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT	64-LQFP (7x7)	128 KB	64-LQFP	CANbus, EBI/EMI, I2C, LINbus, SCI, SmartCard, SPI, USB	External, Internal	FLASH	Surface Mount	52	64 K	192 MHz	A/D 16x12b SAR, D/A 1x12b	ARM® Cortex®-M4F
