Description
General part information

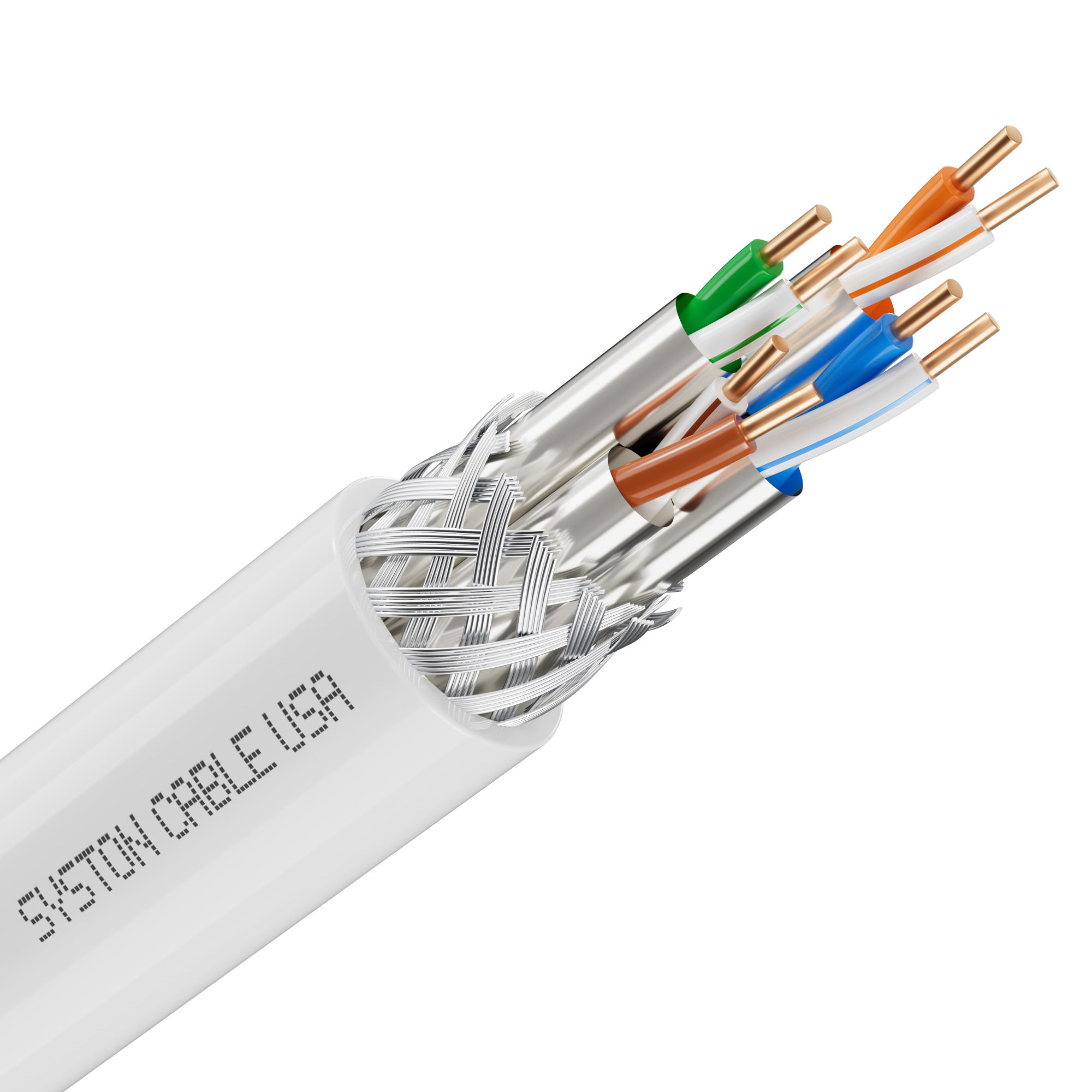

DK-BULK-1588-PB-WH-500
Conductor Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | DK-BULK-1588-PB-WH-500 |
|---|---|
| Cable Type | Multi-Pair, Cat8 |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Foam Polyolefin (FPO) |
| Conductor Material | Annealed Bare, Copper |
| Features | Flame Retardant, Rip Cord, UV Resistant |
| Jacket (Insulation) Diameter | 0.322 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | White |
| Length | 500 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Ratings | 1666, Style, UL |
| Shield Type | Braid, Foil |
| Usage | Video, LAN, Ethernet |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
