2834258
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2834258
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2834258 | 28342 Series |
|---|---|---|
| Coil Current | 20 mA | 20 - 56 mA |
| Coil Resistance | 1.52 kOhms | 1.52 - 430 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC | 24 - 120 VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), 3PDT (3 Form C) |
| Contact Material | Silver (Ag) | Silver (Ag) |
| Contact Rating (Current) | 10 A | 10 A |
| Mounting Type | Socketable | Socketable |
| Operate Time | 20 ms | 12 - 20 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 6 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal), Plug In, 11 Pin (Octal) |
28342 Series

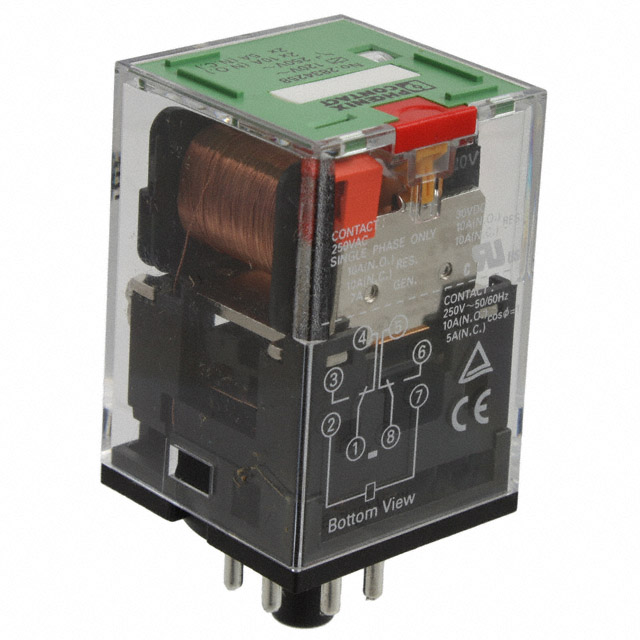

RELAY GEN PURPOSE DPDT 10A 120V
| Part | Operate Time | Contact Form | Coil Voltage | Release Time | Contact Material | Mounting Type | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Coil Type | Coil Resistance | Contact Rating (Current) | Relay Type | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2834258 | 20 ms | DPDT (2 Form C) | 120 VAC | 20 ms | Silver (Ag) | Socketable | 250 VAC, 250 VDC | -10 °C | 40 °C | Plug In, 8 Pin (Octal) | Non Latching | 1.52 kOhms | 10 A | General Purpose | 20 mA |
Phoenix Contact 2834274 | 12 ms | 3PDT (3 Form C) | 24 VDC | 6 ms | Silver (Ag) | Socketable | 250 VAC, 250 VDC | -10 °C | 40 °C | Plug In, 11 Pin (Octal) | Non Latching | 430 Ohms | 10 A | General Purpose | 56 mA |
Phoenix Contact 2834232 | 12 ms | DPDT (2 Form C) | 24 VDC | 6 ms | Silver (Ag) | Socketable | 250 VAC, 250 VDC | -10 °C | 40 °C | Plug In, 8 Pin (Octal) | Non Latching | 430 Ohms | 10 A | General Purpose | 56 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
28342 Series
General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Documents
Technical documentation and resources
