ESS-111-T-03
ActiveSamtec Inc.

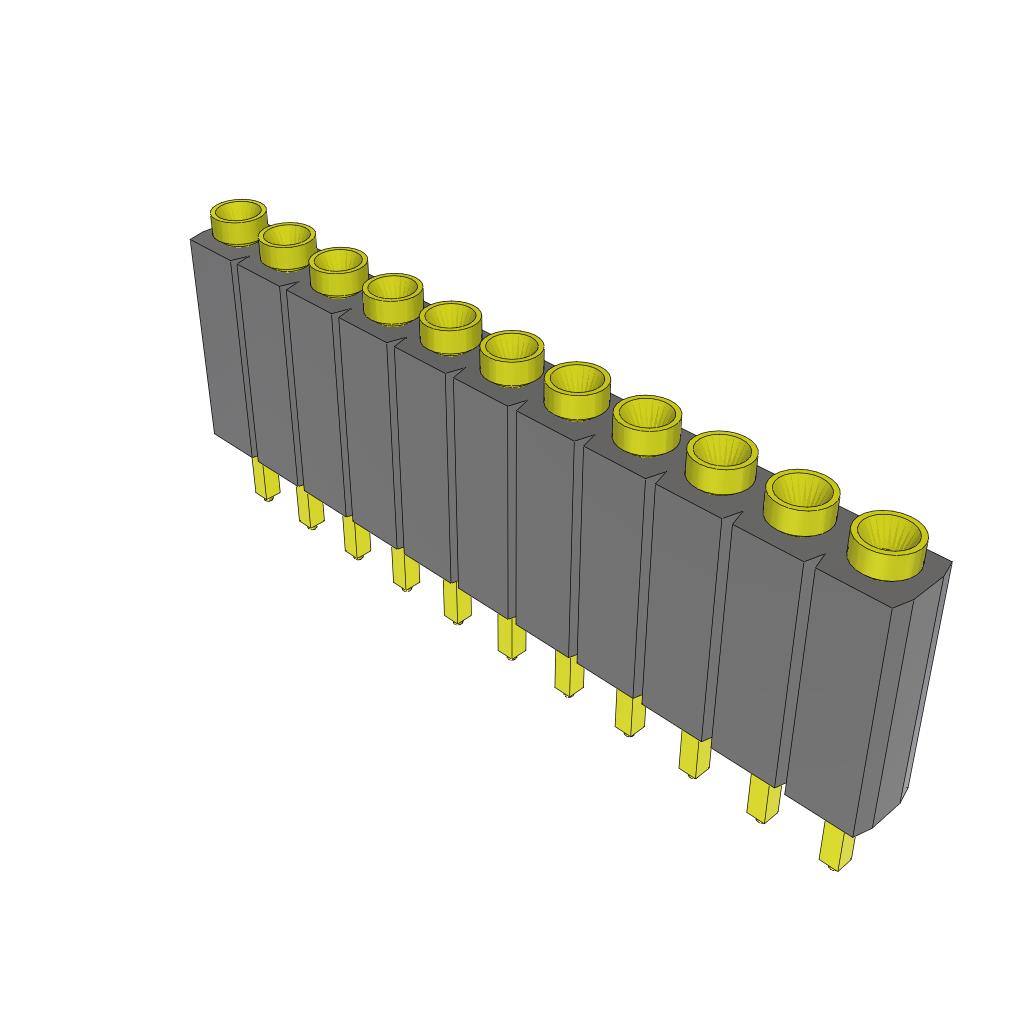

CONN SOCKET STRIP SKT 11 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK
Deep-Dive with AI
Search across all available documentation for this part.
ESS-111-T-03
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 11 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESS-111-T-03 |
|---|---|
| Connector Type | Elevated Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 3.12 mm |
| Contact Length - Post [x] | 0.123 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.3 in |
| Insulation Height [z] | 7.62 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
ESS-111 Series
| Part | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Shape | Connector Type | Number of Positions Loaded | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Finish - Post | Insulation Color | Contact Material | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions | Fastening Type | Termination | Insulation Material | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 1 | 0.173 in | 4.4 mm | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | 0.5 in | 12.7 mm | Tin | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | |||||||||
Samtec Inc. | 1 | 0.215 in | 5.46 mm | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | Gold | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | Gold | 0.3 in | 7.62 mm | 10 çin | 0.25 çm | 10 çin | 0.25 çm | ||||
Samtec Inc. | 1 | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | Gold | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | Gold | 0.3 in | 7.62 mm | 10 çin | 0.25 çm | 10 çin | 0.25 çm | 3.12 mm | 0.123 in | ||||
Samtec Inc. | 1 | 0.173 in | 4.4 mm | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | 0.5 in | 12.7 mm | Tin | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | Gold | 10 çin | 0.25 çm | ||||||
Samtec Inc. | 1 | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | 0.4 in | 10.16 mm | Tin | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | 3.12 mm | 0.123 in | |||||||||
Samtec Inc. | 1 | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | 0.4 in | 10.16 mm | Gold | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | Gold | 10 çin | 0.25 çm | 10 çin | 0.25 çm | 3.12 mm | 0.123 in | ||||
Samtec Inc. | 1 | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | Tin | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | Gold | 0.3 in | 7.62 mm | 10 çin | 0.25 çm | 3.12 mm | 0.123 in | ||||||
Samtec Inc. | 1 | Circular | Elevated Socket | All | UL94 V-0 | -55 °C | 125 °C | Gold | Black | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | Female Socket | 11 | Push-Pull | Solder | Liquid Crystal Polymer (LCP) | Gold | 0.3 in | 7.62 mm | 10 çin | 0.25 çm | 10 çin | 0.25 çm | 3.12 mm | 0.123 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ESS-111 Series
11 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
