MVU10-10RK

Active

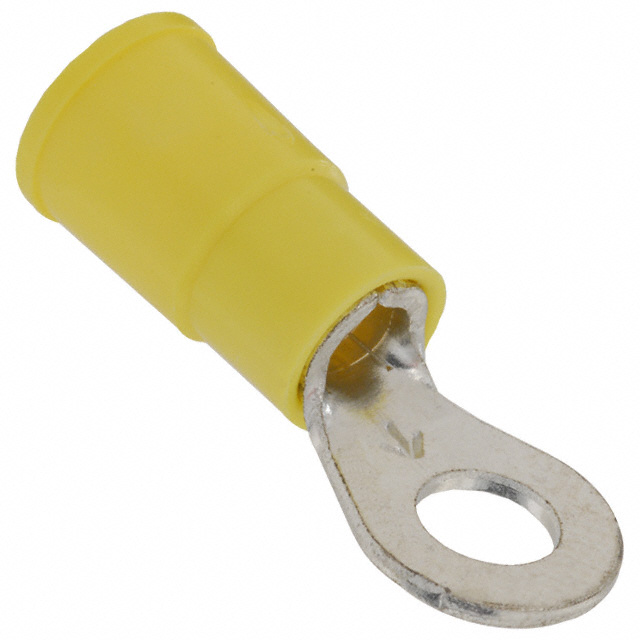

RING TONGUE TERMINAL, M5, #10, 10 AWG, SCOTCHLOK SERIES, YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMVU10-xR/SK Selection Guide Datasheet +2

MVU10-10RK

Active

RING TONGUE TERMINAL, M5, #10, 10 AWG, SCOTCHLOK SERIES, YELLOW

Deep-Dive with AI

DocumentsMVU10-xR/SK Selection Guide Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.79
		10	$ 0.60
		25	$ 0.54
		50	$ 0.50
		100	$ 0.46
		250	$ 0.42
		500	$ 0.39
		1000	$ 0.36
		2500	$ 0.33
Newark	Each	500	$ 0.55
		1000	$ 0.45

Description

General part information

MVU10 Series

Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp

Documents

Technical documentation and resources

Specification	MVU10-10RK	MVU10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	-	Butted Seam
Gender	-	Male
Insulation	Insulated	Insulated, Fully Insulated, Non-Mating End Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Length - Overall	26.16 mm	26.16 - 26.67 mm
Length - Overall	-	24.89 - 32 mm
Length - Overall [x]	1.03 in	0.98 - 1.26 in
Length - Ring Center to Termination	-	0.28 - 0.29 in
Length - Ring Center to Termination	-	7.11 - 7.37 mm
Length - Ring Center to Termination	-	0.44 in
Length - Ring Center to Termination	-	11.18 mm
Length - Termination	-	13.97 mm
Length - Termination	-	0.55 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	Varies by Wire Size
Number of Wire Entries	-	2
Stud/Tab Size	10 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Tab Thickness	-	0.032 in
Tab Thickness	-	0.81 mm
Tab Width	-	6.35 mm
Tab Width	-	0.25 in
Terminal Type	Circular	Standard, Circular, Snap, Spring, Inline, Individual Openings (Parallel), Flanged, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.04 in	0.04 in
Thickness	1.02 mm	1.02 mm
Width - Outer Edges	-	0.28 - 0.54 in
Width - Outer Edges	-	13.46 mm
Width - Outer Edges	-	7.11 - 13.72 mm
Width - Outer Edges [x]	9.65 mm	9.65 mm
Width - Outer Edges [x]	0.38 "	0.38 "
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part

Wire Gauge [Max]

Wire Gauge [Min]

Width - Outer Edges [x]

Termination

Features

Insulation Diameter

Length - Ring Center to Termination

Insulation

Length - Termination

Color

Material - Insulation

Length - Overall [x]

Length - Overall

Contact Finish

Stud/Tab Size

Contact Material

Terminal Type

Mounting Type

Thickness

Length - Overall [x]

Stud/Tab Size

Width - Outer Edges [y]

Width - Outer Edges

Width - Outer Edges [y]

Length - Ring Center to Termination [x]

Number of Wire Entries

Tab Thickness

Gender

Tab Width

Number of Wire Entries

MVU10-8FX-BOTTLE

12 AWG

10 AWG

9.65 mm

0.38 "

Crimp

Butted Seam

0.25 "

6.35 mm

0.29 in

7.37 mm

Insulated

13.97 mm

0.55 in

Yellow

Vinyl

1.03 in

26.16 mm

Tin

8 Stud

Copper, ETP

Standard

Free Hanging (In-Line)

MVU10-516R/SK

12 AWG

10 AWG

Crimp

0.25 "

6.35 mm

Insulated

Yellow

Vinyl

1.26 in

Tin

Copper, ETP

Circular

Free Hanging (In-Line)

0.04 in

1.02 mm

32 mm

0.3125 Stud

0.53 in

13.46 mm

MVU10-8RX-BOTTLE

12 AWG

10 AWG

9.65 mm

0.38 "

Crimp

0.25 "

6.35 mm

Insulated

Yellow

Vinyl

1.03 in

26.16 mm

Tin

8 Stud

Copper, ETP

Circular

Free Hanging (In-Line)

0.04 in

1.02 mm

MVU10-38RX-BOTTLE

12 AWG

10 AWG

Crimp

0.25 "

6.35 mm

Insulated

Yellow

Vinyl

1.26 in

Tin

3/8 Stud

Copper, ETP

Circular

Free Hanging (In-Line)

0.04 in

1.02 mm

32 mm

0.54 in

13.72 mm

MVU10-14FLK

12 AWG

10 AWG

Crimp

Butted Seam

0.25 "

6.35 mm

Insulated

13.97 mm

0.55 in

Yellow

Vinyl

1.24 in

Tin

Copper, ETP

Snap, Spring

Free Hanging (In-Line)

31.5 mm

0.25 Stud

0.43 "

10.92 mm

0.44 in

11.18 mm

MVU10PCK

12 AWG

10 AWG

Crimp

Fully Insulated

Yellow

Inline, Individual Openings (Parallel)

Varies by Wire Size

MVU10-10FBK

12 AWG

10 AWG

Crimp

Butted Seam

0.25 "

6.35 mm

0.29 in

7.37 mm

Insulated

13.97 mm

0.55 in

Yellow

Vinyl

1.03 in

26.16 mm

Tin

Copper, ETP

Standard

Free Hanging (In-Line)

10 Stud

0.32 in

8.13 mm

MVU10-4R/SK

12 AWG

10 AWG

Crimp

0.25 "

6.35 mm

Insulated

Yellow

Vinyl

0.98 in

Tin

Copper, ETP

Circular

Free Hanging (In-Line)

0.04 in

1.02 mm

24.89 mm

4 Stud

0.28 in

7.11 mm

MVU10-38R/SK

12 AWG

10 AWG

Crimp

0.25 "

6.35 mm

Insulated

Yellow

Vinyl

1.26 in

Tin

3/8 Stud

Copper, ETP

Circular

Free Hanging (In-Line)

0.04 in

1.02 mm

32 mm

0.54 in

13.72 mm

MVU10-10RX

12 AWG

10 AWG

9.65 mm

0.38 "

Crimp

0.25 "

6.35 mm

Insulated

Yellow

Vinyl

1.03 in

26.16 mm

Tin

Copper, ETP

Circular

Free Hanging (In-Line)

0.04 in

1.02 mm

10 Stud

Part	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Features	Insulation Diameter	Insulation Diameter	Length - Ring Center to Termination	Length - Ring Center to Termination	Insulation	Length - Termination	Length - Termination	Color	Material - Insulation	Length - Overall [x]	Length - Overall	Contact Finish	Stud/Tab Size	Contact Material	Terminal Type	Mounting Type	Thickness	Thickness	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Number of Wire Entries
3M MVU10-8FX-BOTTLE	12 AWG	10 AWG	9.65 mm	0.38 "	Crimp	Butted Seam	0.25 "	6.35 mm	0.29 in	7.37 mm	Insulated	13.97 mm	0.55 in	Yellow	Vinyl	1.03 in	26.16 mm	Tin	8 Stud	Copper, ETP	Standard	Free Hanging (In-Line)
3M MVU10-516R/SK	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.26 in		Tin		Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	32 mm	0.3125 Stud	0.53 in	13.46 mm
3M MVU10-8RX-BOTTLE	12 AWG	10 AWG	9.65 mm	0.38 "	Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.03 in	26.16 mm	Tin	8 Stud	Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm
3M MVU10-38RX-BOTTLE	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.26 in		Tin	3/8 Stud	Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	32 mm		0.54 in		13.72 mm
3M MVU10-14FLK	12 AWG	10 AWG			Crimp	Butted Seam	0.25 "	6.35 mm			Insulated	13.97 mm	0.55 in	Yellow	Vinyl	1.24 in		Tin		Copper, ETP	Snap, Spring	Free Hanging (In-Line)			31.5 mm	0.25 Stud	0.43 "		10.92 mm	0.44 in	11.18 mm
3M MVU10PCK	12 AWG	10 AWG			Crimp						Fully Insulated			Yellow							Inline, Individual Openings (Parallel)											Varies by Wire Size
3M MVU10-10FBK	12 AWG	10 AWG			Crimp	Butted Seam	0.25 "	6.35 mm	0.29 in	7.37 mm	Insulated	13.97 mm	0.55 in	Yellow	Vinyl	1.03 in	26.16 mm	Tin		Copper, ETP	Standard	Free Hanging (In-Line)				10 Stud	0.32 in		8.13 mm
3M MVU10-4R/SK	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	0.98 in		Tin		Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	24.89 mm	4 Stud	0.28 in		7.11 mm
3M MVU10-38R/SK	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.26 in		Tin	3/8 Stud	Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	32 mm		0.54 in		13.72 mm
3M MVU10-10RX	12 AWG	10 AWG	9.65 mm	0.38 "	Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.03 in	26.16 mm	Tin		Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm		10 Stud
