2944795
ActivePhoenix Contact

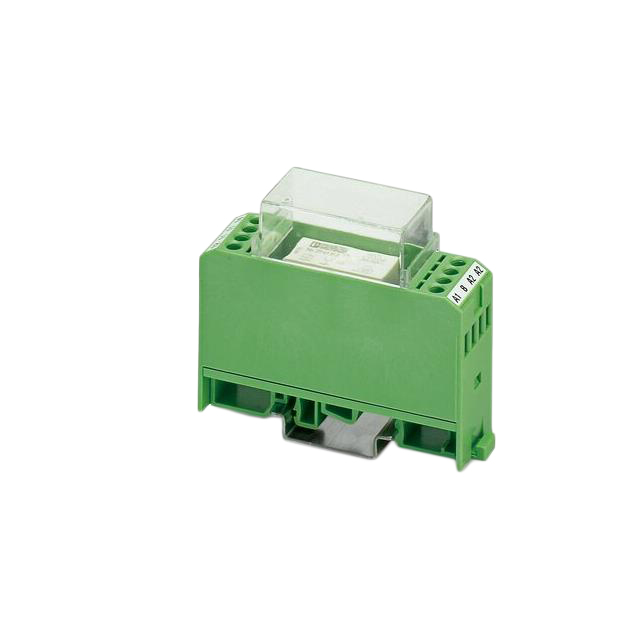

RELAY MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2944795
ActivePhoenix Contact
RELAY MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2944795 | 29447 Series |
|---|---|---|
| Coil Current | 3.5 mA | 3.5 - 21 mA |
| Coil Resistance | 65.71 kOhms | 1.14 - 65.71 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | DPDT (2 Form C) | SPST-NO (1 Form A), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Palladium (AgPd), Gold (Au), Silver Nickel (AgNi) |
| Contact Rating (Current) | - | 2 A |
| Features | Varistor | Lighted Indicator, Socket Included, Varistor |
| Load - Max Switching | - | 250 - 300 W |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 15 ms | 7 - 15 ms |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 11 - 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 125 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
29447 Series
RELAY GEN PURPOSE SPST 2A 24V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Release Time | Contact Form | Mounting Type | Load - Max Switching | Coil Current | Contact Rating (Current) | Coil Resistance | Features | Switching Voltage | Contact Material | Termination Style | Relay Type | Operate Time | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2944782 | 50 °C | -20 C | 24 VAC | 11 ms | SPST-NO (1 Form A) | DIN Rail | 250 VA, 300 W | 21 mA | 2 A | 1.14 kOhms | Lighted Indicator, Socket Included | 125 VAC, 150 VDC | Gold (Au), Silver Palladium (AgPd) | Screw Terminal | General Purpose | 7 ms | Non Latching |
Phoenix Contact 2944795 | 50 °C | -20 C | 230 VAC | 15 ms | DPDT (2 Form C) | DIN Rail | 3.5 mA | 65.71 kOhms | Varistor | 250 VAC, 250 VDC | Silver Nickel (AgNi) | Screw Terminal | General Purpose | 15 ms | Non Latching |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 132.17 | |
Description
General part information
29447 Series
General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail
