6XV18785HN10

Active

Siemens

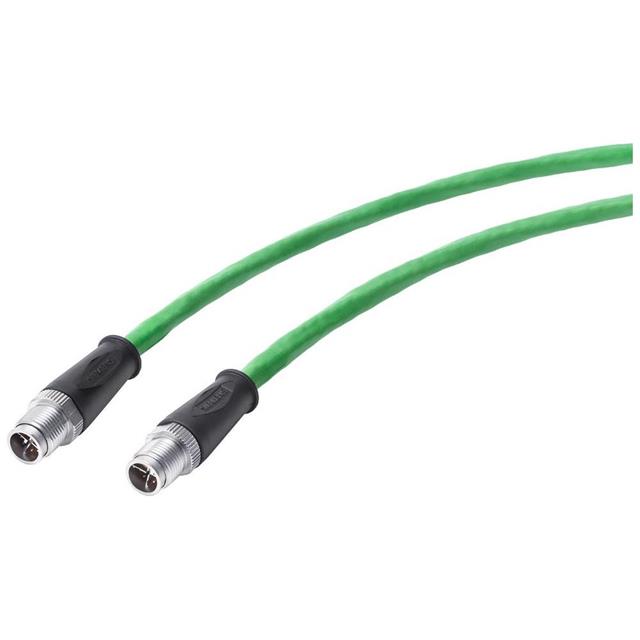

CBL CIRC 8POS MALE TO MALE 32.8'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6XV18785HN10

Active

Siemens

CBL CIRC 8POS MALE TO MALE 32.8'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.00

Description

General part information

6XV18785 Series

Circular Cable Assembly Shielded 32.8' (10.00m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6XV18785HN10	6XV18785 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions	8 positions
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation	X	X
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Receptacle	Receptacle, Right Angle, Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	8	8
2nd Connector Number of Positions Loaded	All	All
2nd Connector Orientation	X	X
2nd Connector Shell Size - Insert	M12	M12
2nd Connector Type	Receptacle	Receptacle, Right Angle, Receptacle
Assembly Configuration	Standard	Standard
Cable Material	Polyurethane (PUR)	Polyurethane (PUR)
Cable Type	Round	Round Cable, Round
Color	Green	Green
Connector Type	-	Plug to Plug, Circular 08 pos Male to RJ45, 8p8c, Circular 08 pos Male, Right Angle to RJ45, 8p8c
Length	-	1.5 - 30 m
Length	-	4.92 - 98.43 ft
Length	-	1 - 500 m
Length	-	1.64 - 82.02 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Shielding	Shielded	Shielded
Style	-	Cat5e

6XV18785 Series

IE CONNECTING CABLE RJ45. 4X2. 2

Part	Style	Color	Mounting Type	Cable Type	Shielding	Number of Positions/Contacts	Connector Type	Length	Length	2nd Connector Number of Positions	Length [x]	Length [x]	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert	1st Connector Number of Positions	Assembly Configuration	1st Connector Number of Positions Loaded	2nd Connector Type	1st Connector Shell Size - Insert	1st Connector Type	Cable Material	1st Connector Mounting Type	1st Connector Orientation	2nd Connector Orientation	2nd Connector Mounting Type	1st Connector Gender
Siemens 6XV18785BN20	Cat5e	Green	Free Hanging (In-Line)	Round Cable	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	20 m	65.62 ft
Siemens 6XV18785GH10		Green		Round	Shielded					8	1 m	3.28 ft	All	M12	8 positions	Standard	All	Receptacle, Right Angle	M12	Receptacle, Right Angle	Polyurethane (PUR)	Free Hanging (In-Line)	X	X	Free Hanging (In-Line)	Male Pins
Siemens 6XV18785HH20		Green		Round	Shielded					8	2 m	6.56 ft	All	M12	8 positions	Standard	All	Receptacle	M12	Receptacle	Polyurethane (PUR)	Free Hanging (In-Line)	X	X	Free Hanging (In-Line)	Male Pins
Siemens 6XV18785BN30	Cat5e	Green	Free Hanging (In-Line)	Round Cable	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	30 m	98.43 ft
Siemens 6XV18785HH10		Green		Round	Shielded					8	1 m	3.28 ft	All	M12	8 positions	Standard	All	Receptacle	M12	Receptacle	Polyurethane (PUR)	Free Hanging (In-Line)	X	X	Free Hanging (In-Line)	Male Pins
Siemens 6XV18785HN15		Green		Round	Shielded					8	15 m	49.2 ft	All	M12	8 positions	Standard	All	Receptacle	M12	Receptacle	Polyurethane (PUR)	Free Hanging (In-Line)	X	X	Free Hanging (In-Line)	Male Pins
Siemens 6XV18785TN10		Green		Round	Shielded		Circular 08 pos Male to RJ45, 8p8c	10 m	32.81 ft
Siemens 6XV18785TH10		Green		Round	Shielded		Circular 08 pos Male to RJ45, 8p8c				1 m	3.28 ft
Siemens 6XV18785BN25	Cat5e	Green	Free Hanging (In-Line)	Round Cable	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug				25 m	82.02 ft
Siemens 6XV18785SH50		Green		Round	Shielded		Circular 08 pos Male, Right Angle to RJ45, 8p8c
